This Codelab will walk you through everything you need to know about FlexboxLayout in Android.
You'll learn the following concepts:
- Handling Flexbox's directions, alignments and sizes as a ViewGroup.
- Handling individual item's kinds of behaviors.
- Using Flexbox as LayoutManager for RecyclerView.
Hope you'll enjoy the Codelab!.
The source code for this codelab can be found on Github.
In this step, you will download the code for the entire Codelab and run a simple example app.
Click the following link to download the source code for this codelab:
Download Code Lab sources
- Unzip the code, and open the project.
- Run the app

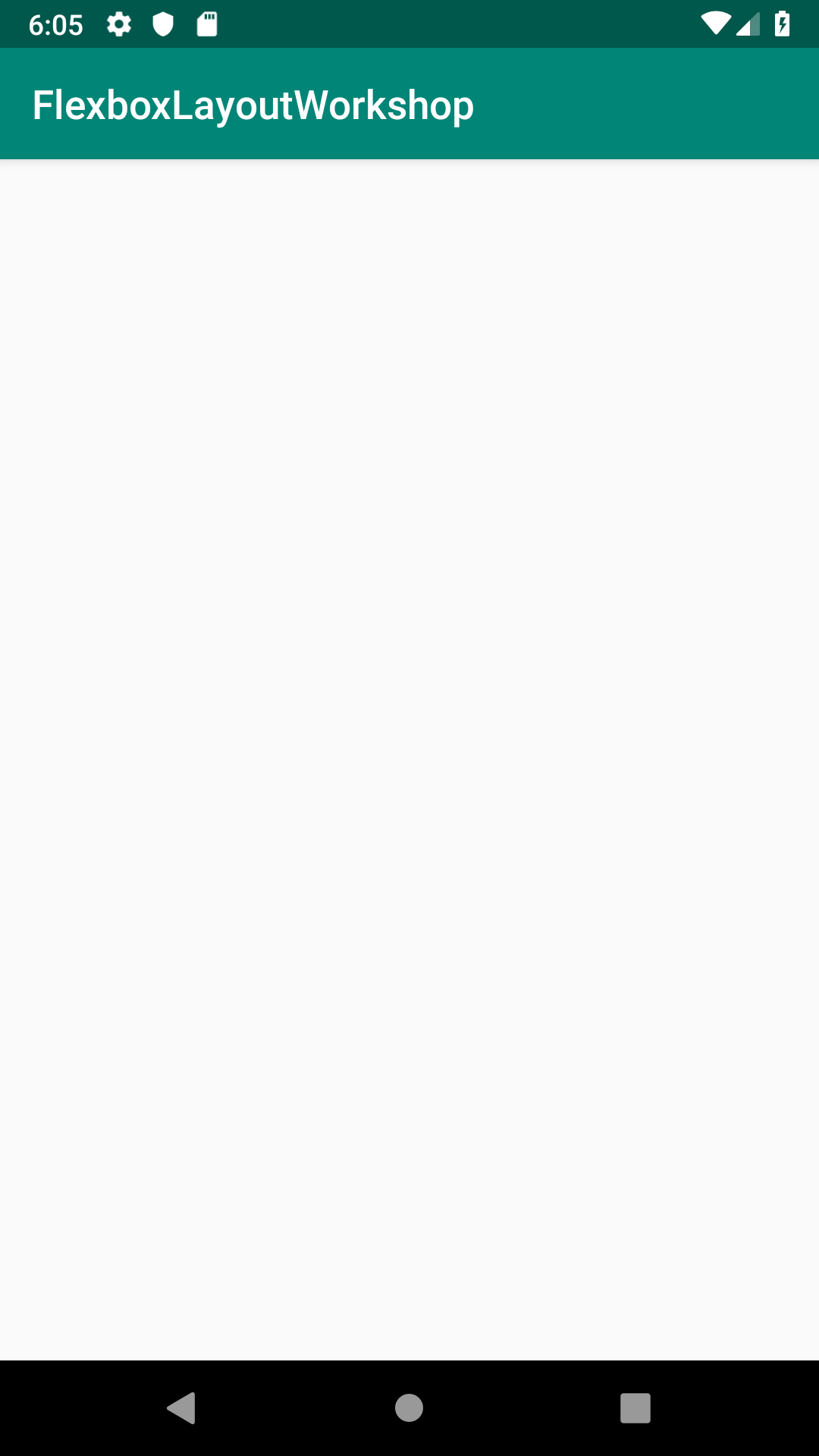

You should see a blank app that looks like this:
Feel free to visit us on GitHub.
Go to res -> activity_main.xml, and add the following line inside your ConstraintLayout root view :
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
</com.google.android.flexbox.FlexboxLayout>
Here you just adding the FlexboxLayout element.
The FlexboxLayout is the element in charge of arranging our items, so next thing is to add some elements.
Add 3 ImageViews with a nice dog image as direct sons of the FlexboxLayout.
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
Run the app.

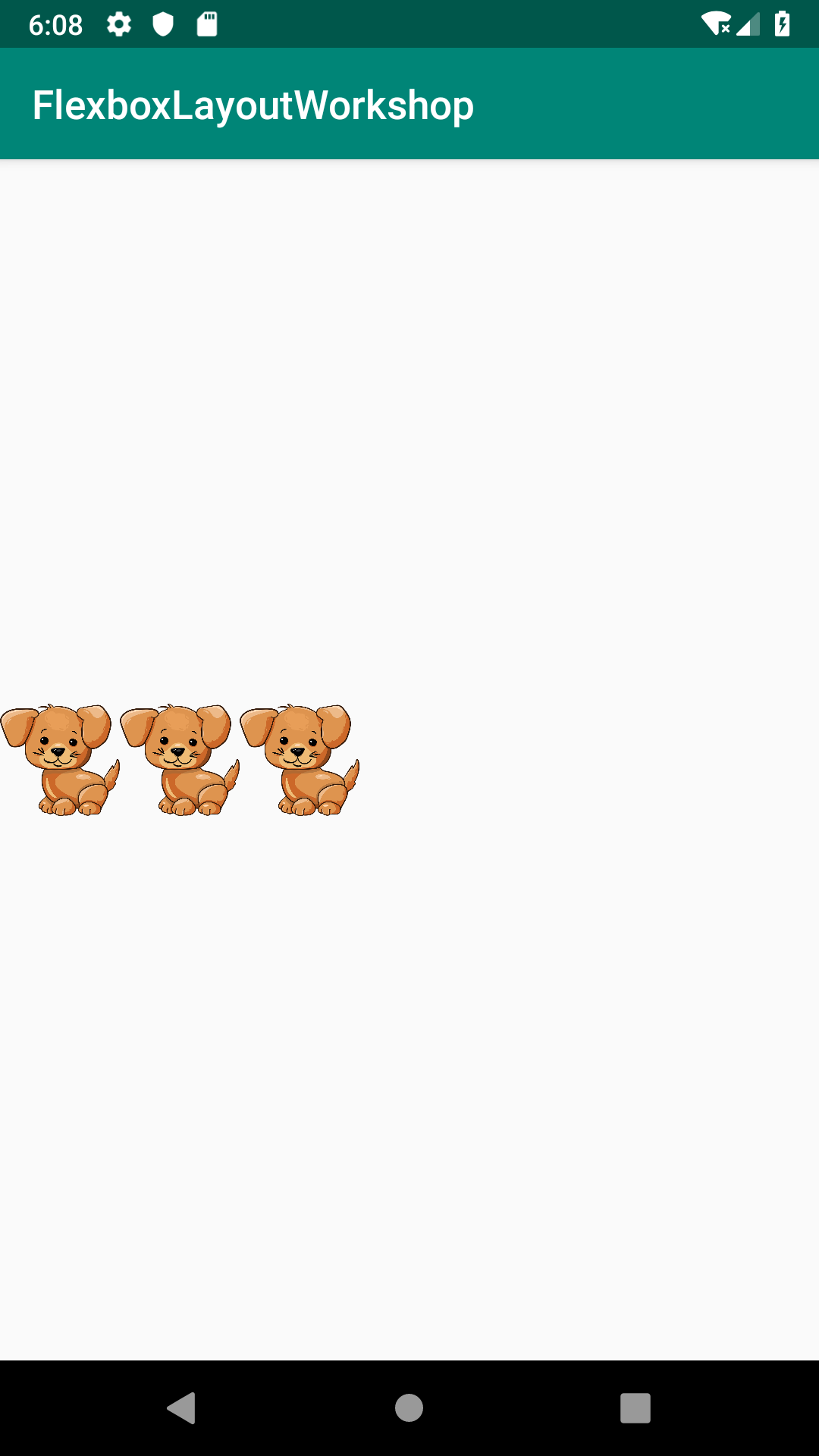

It should look like this:
Using FlexboxLayout you can determine the direction from which your items will be arranged, you can choose to arrange them one by one as rows, as columns or, to reverse their insertion order.
The attributes are as following:
- row.
- row_reverse
- column
- column_reverse
In your activity_main.xml add the following line to your FlexboxLayout:
app:flexDirection="column"

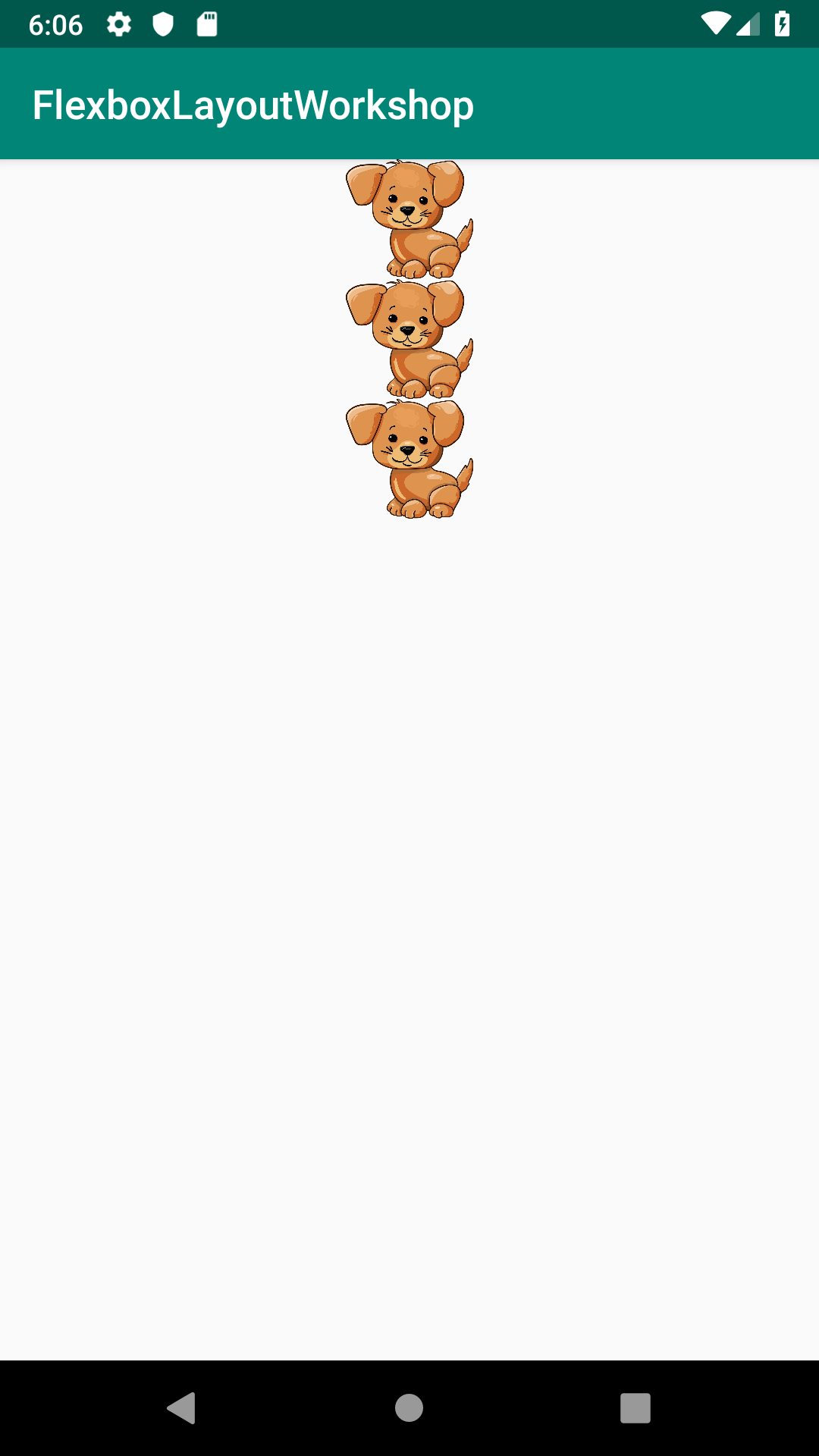

It should look like this:
Now, chage it to :
app:flexDirection="column_reverse"
It should look like this:
Chage it to :
app:flexDirection="row"
It should look like this:
Last, change it to :
app:flexDirection="row_reverse"

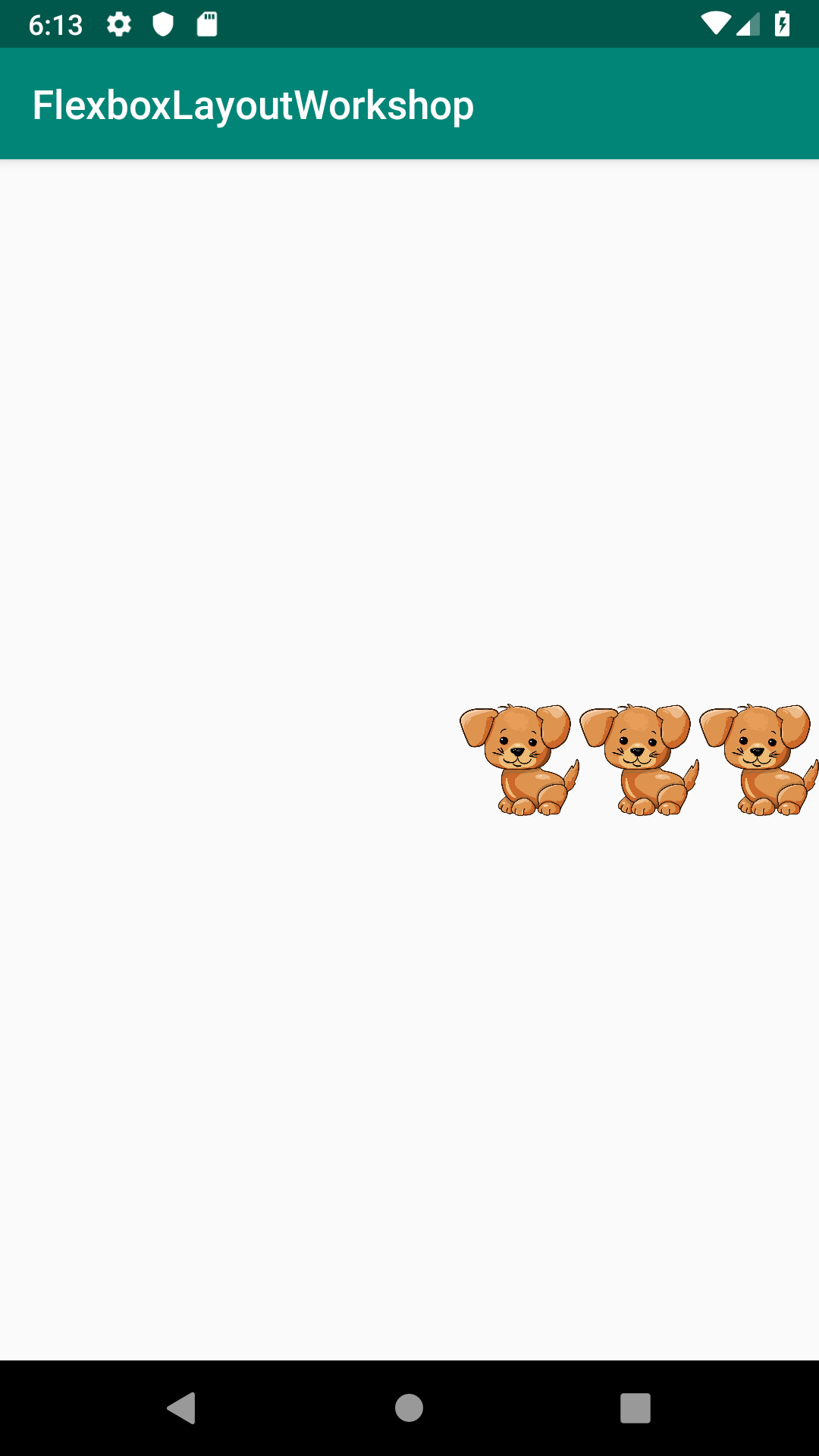

It should look like this:
To summarize, flexDirection attribute tells FlexboxLayout from where to start arrange items.
Cool, hha?
Now that you know how to decide your flexDirection, we can move on to next chapter.
For that, your FlexboxLayout should look like this :
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
After you've decided what is your flexDirection, it is time to choose if your layout will be a single-line or a multi-line layout.
The attributes are as following:
- nowrap (single-line)
- wrap (nulti-line)
- wrap_reverse
Add 7 more ImageViews so that your FlexboxLayout will contain 10 items.
Now add the following line to your FlexboxLayout:
app:flexWrap="wrap"
Your layout should look like this:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>

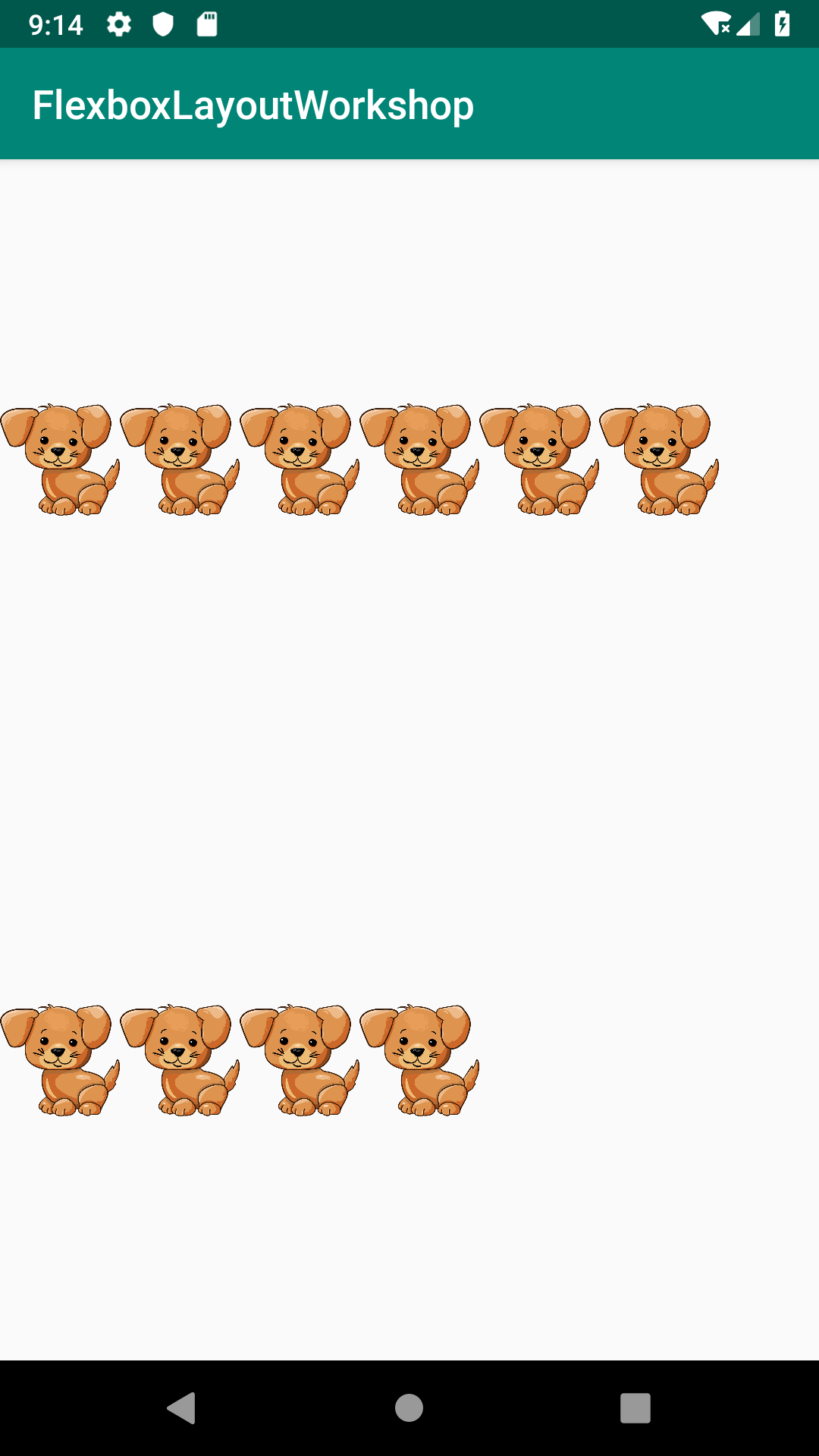

And the outcome of it is like this:
Change your flexWrap to :
app:flexWrap="nowrap"
The outcome of this should like:
Change your flexWrap it to :
app:flexWrap="wrap_reverse"

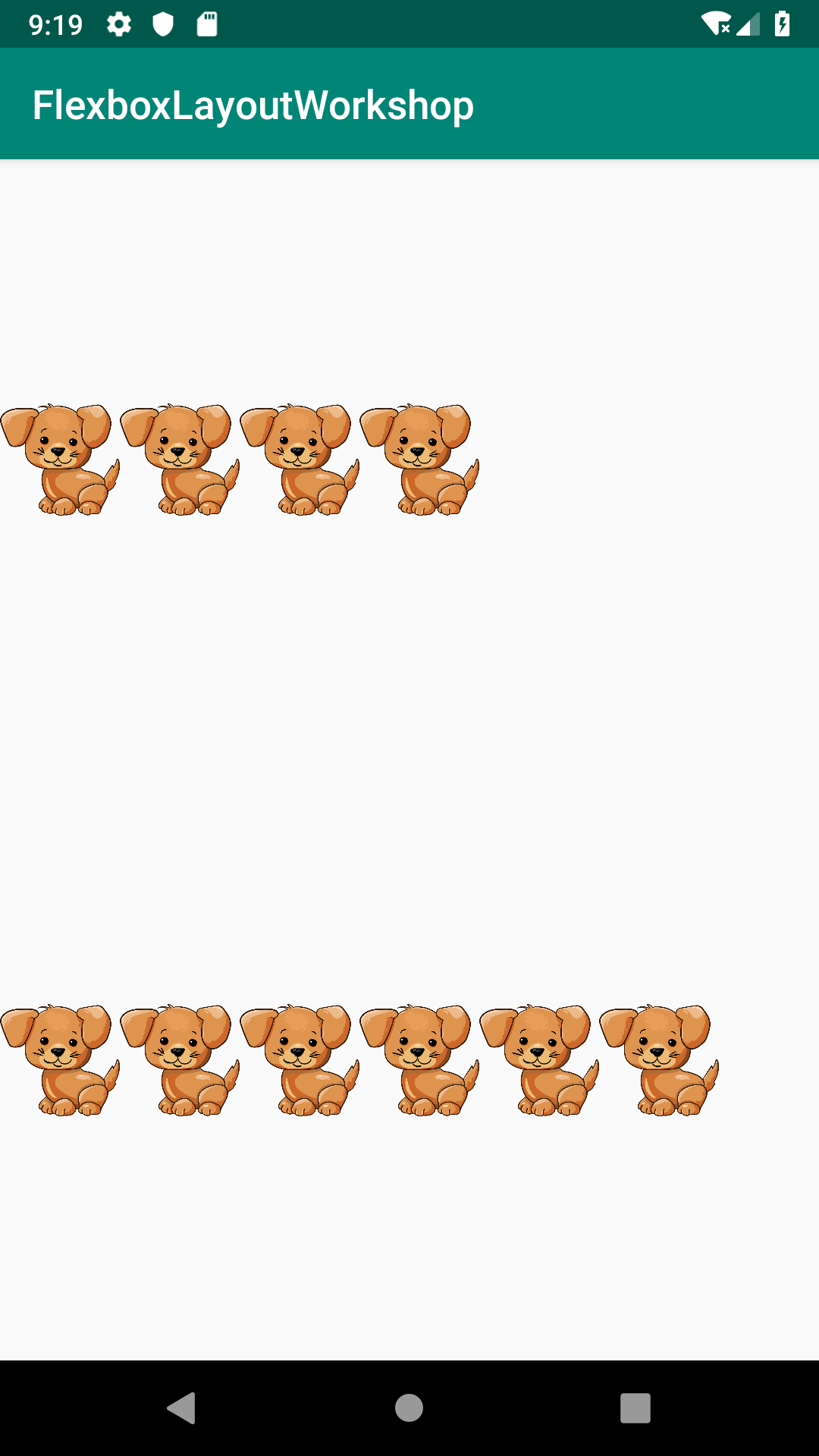

The outcome of this should like:
For the next step, delete tow of your nice little doggies ImageViews, and change the flexwrap to wrap
The layout should look like this:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
Up until now we can manipulate the way in which FlexboxLayout will arrange the items regarding their starting point, direction ect.
But what if we want to control the space between the items themselves??
The justifyContent is your answer! it is the attribute in charge of how your items will be aligned to each other.
The possibilities are as follow:
- flex_start (start arrange from the start without spacing between the items)
- flex_end (start arrange from the end without spacing between the items)
- center (arrange the items to be center without spacing)
- space_between (arrange the items to have space between themselves as much as possible)
- space_around (arrange the items to have space between themselves and also have space from the edges of the layout)
Start by adding the following line to your FlexboxLayout:
app:justifyContent="center"

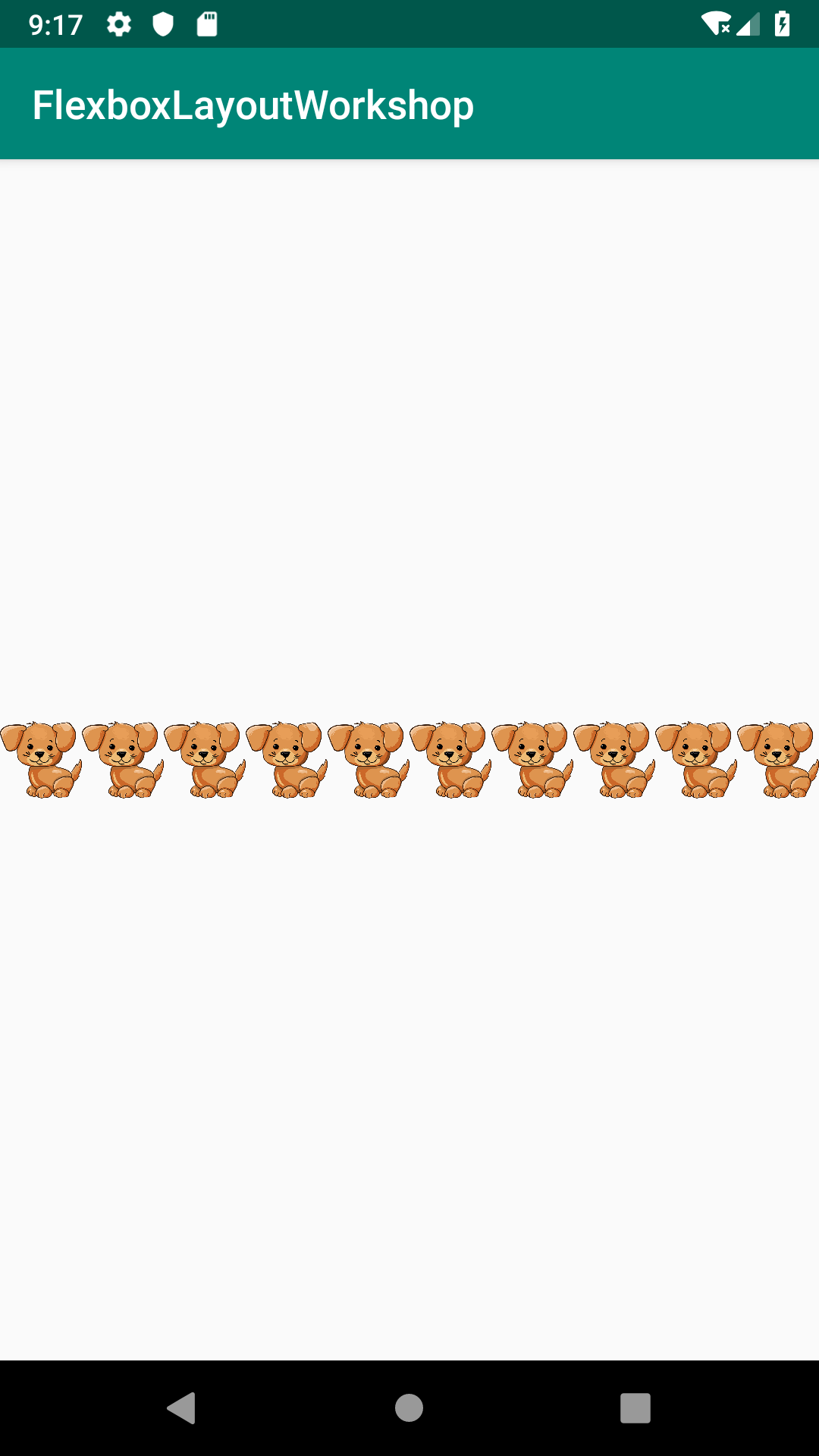

That should look like this:
Change it to :
app:justifyContent="space_between"

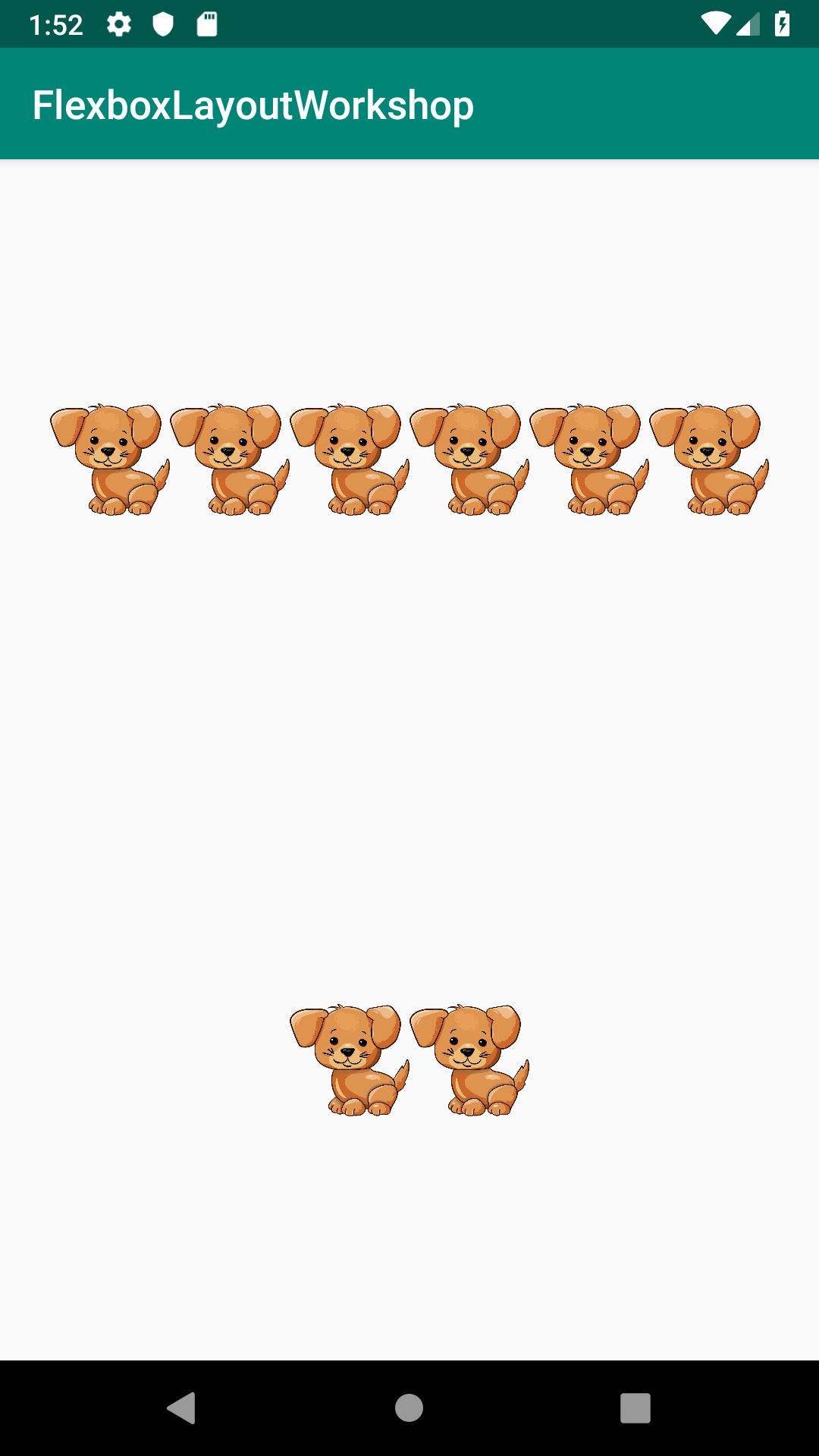

That should look like this:
Change it to :
app:justifyContent="space_around"

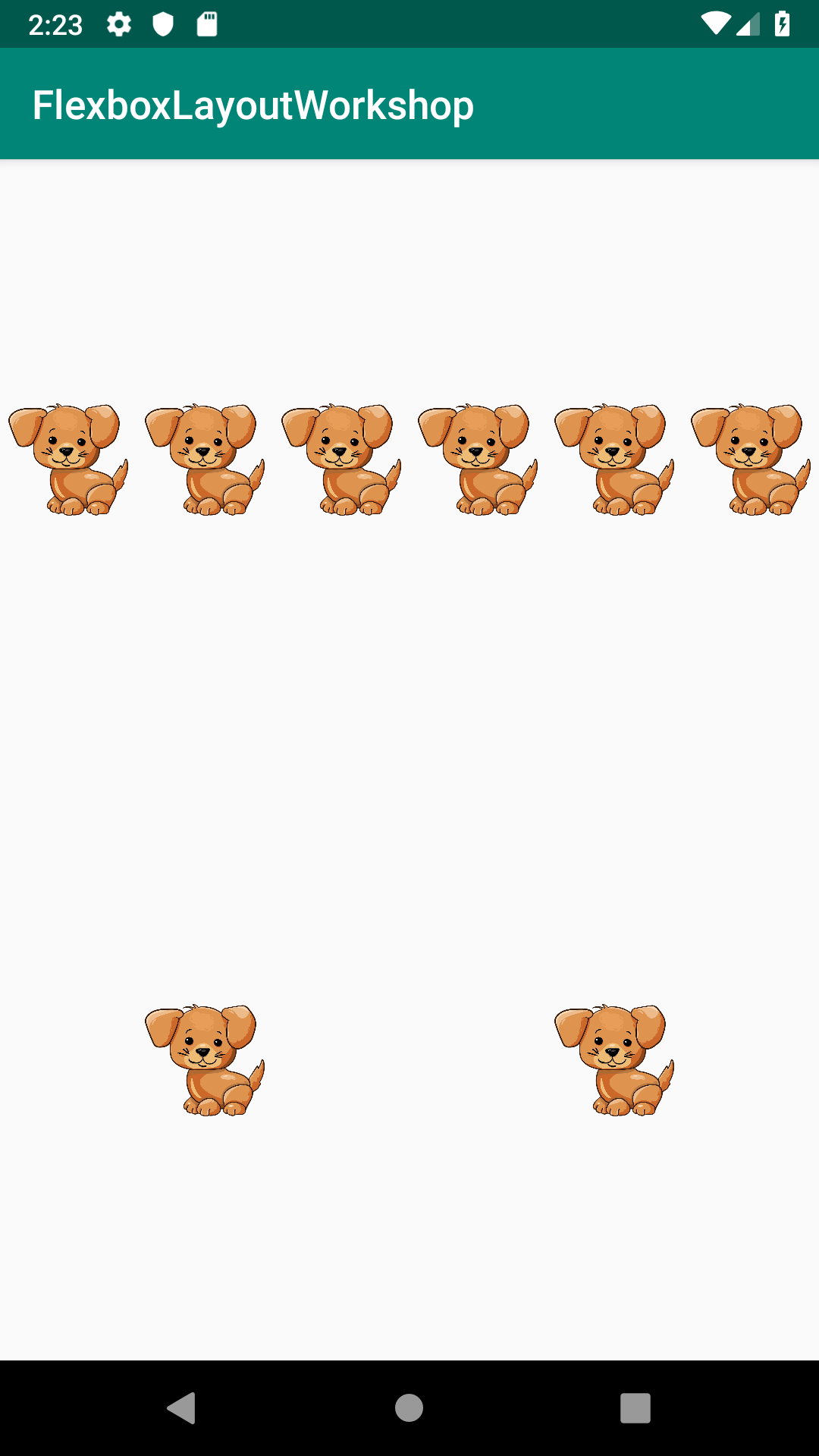

That should look like this:
Change it to :
app:justifyContent="flex_start"

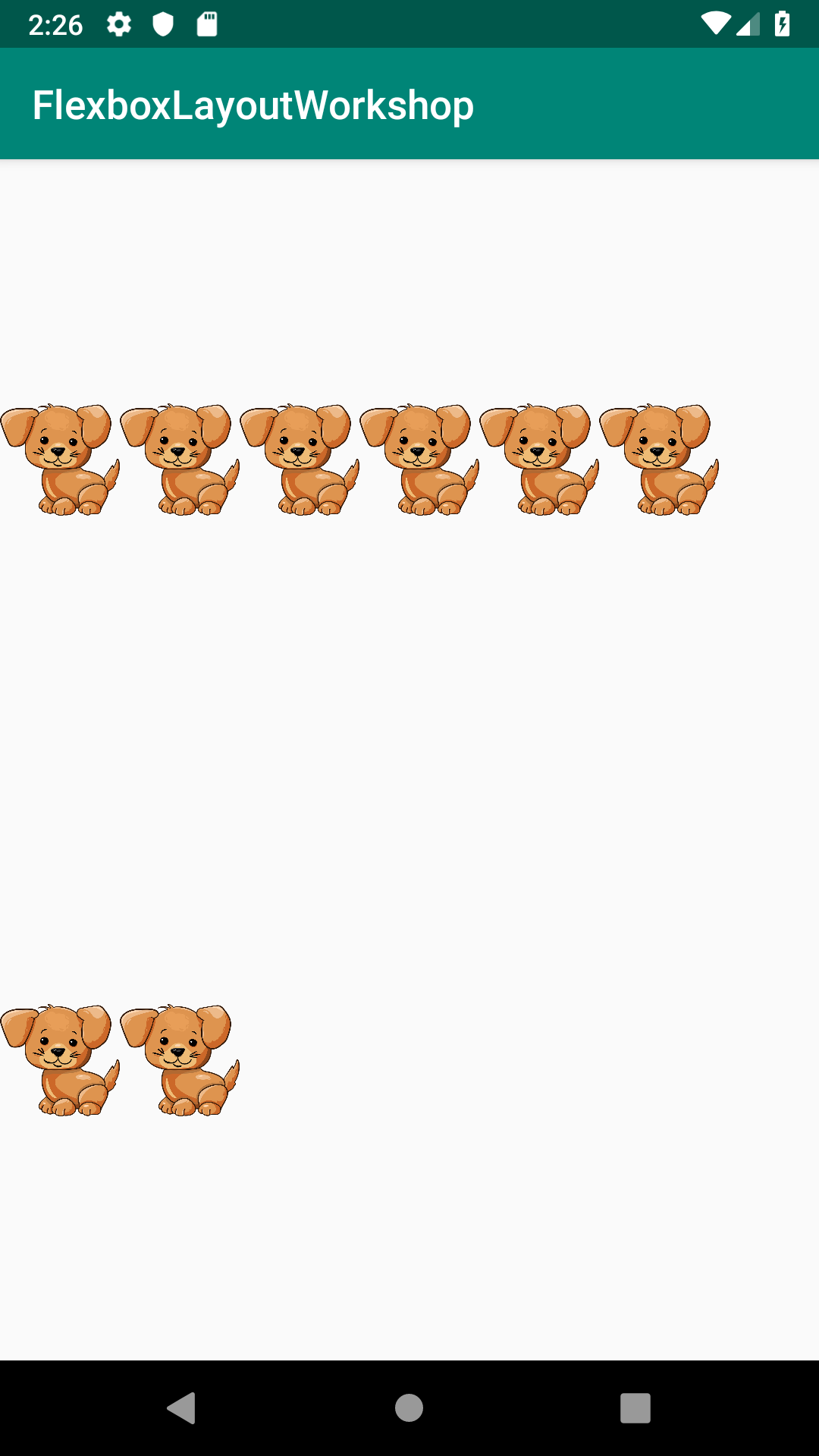

That should look like this:
flex_end is just the opposite of flex_start.
Great!
You should note an important thing here.
Every layout has X and Y axises. X is the horizontal while Y is the vertical.
In FlexboxLayout you don't use the terms horizontal or vertical. instead you have a main axis and a cross axis.
Those are flexible to your needs, you decide if the main axis will be horizontal or vertical by flexDirection you have already met.
By using justifyContent, you determine the behavior of main axis(a.k.a flex line).
The treatment of the cross axis's behavior will be in the next step alignItems.
Well, now you know justifyContent :)
Here is the code for the next step:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="space_between">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
As mentioned in the paragraph above, alignItems is about control the arrangement of your cross axis.
These are your possibilities:
- stretch
- flex_start
- flex_end
- center
- baseline
Bare in mind that we are demonstration only part of the permutations that FlexboxLayout has to offer since we already used :
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="space_between"
Also, We will not explore all the possibilities of alignItems since some of them looks the same under the above parameters.
Start by adding the following line to your FlexboxLayout:
app:alignItems="flex_start"
That should look like this:
Change it to :
app:alignItems="flex_end"

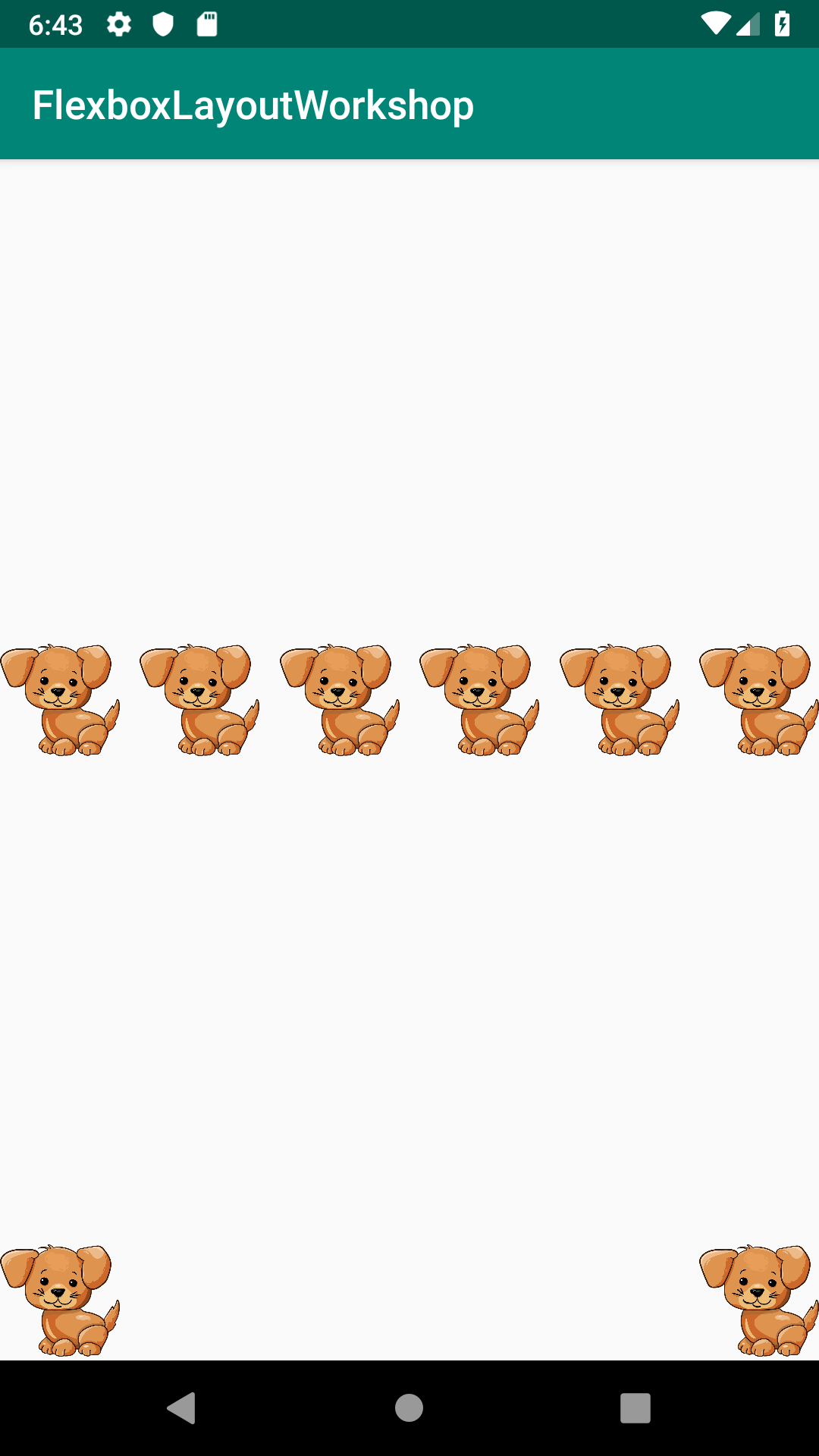

That should look like this:
Change it to :
app:alignItems="center"
That should look like this:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="space_between"
app:alignItems="center">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
In order to control the spac between the lines of the cross axis, you will want to use alignContent
You can use the following attributes for that:
- stretch
- flex_start
- flex_end
- center
- space_between
- space_around
Lets explore some of them.
Start by adding the following line to your FlexboxLayout:
app:alignContent="flex_start"

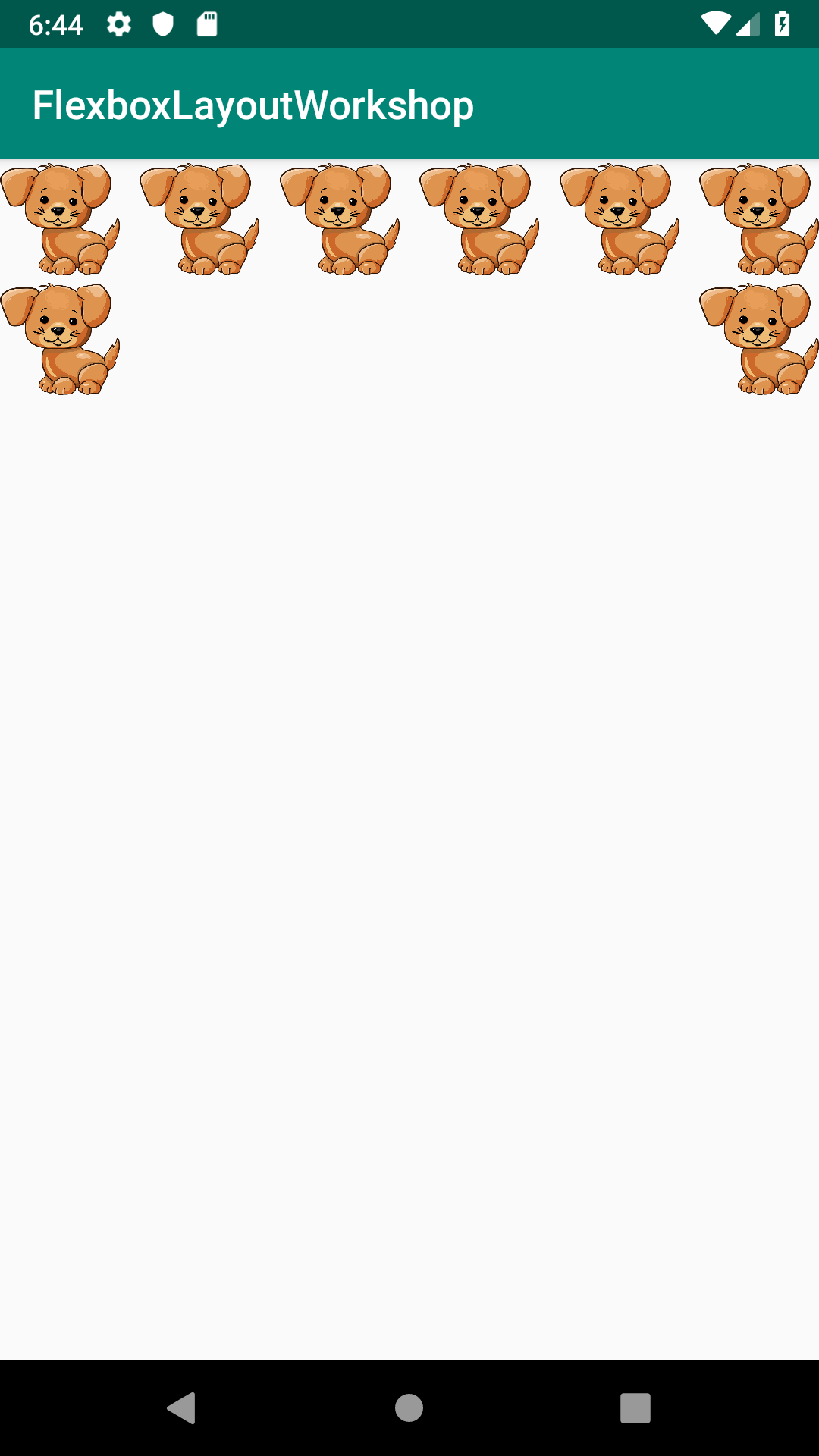

That should look like this:
Change it to :
app:alignItems="space_between"

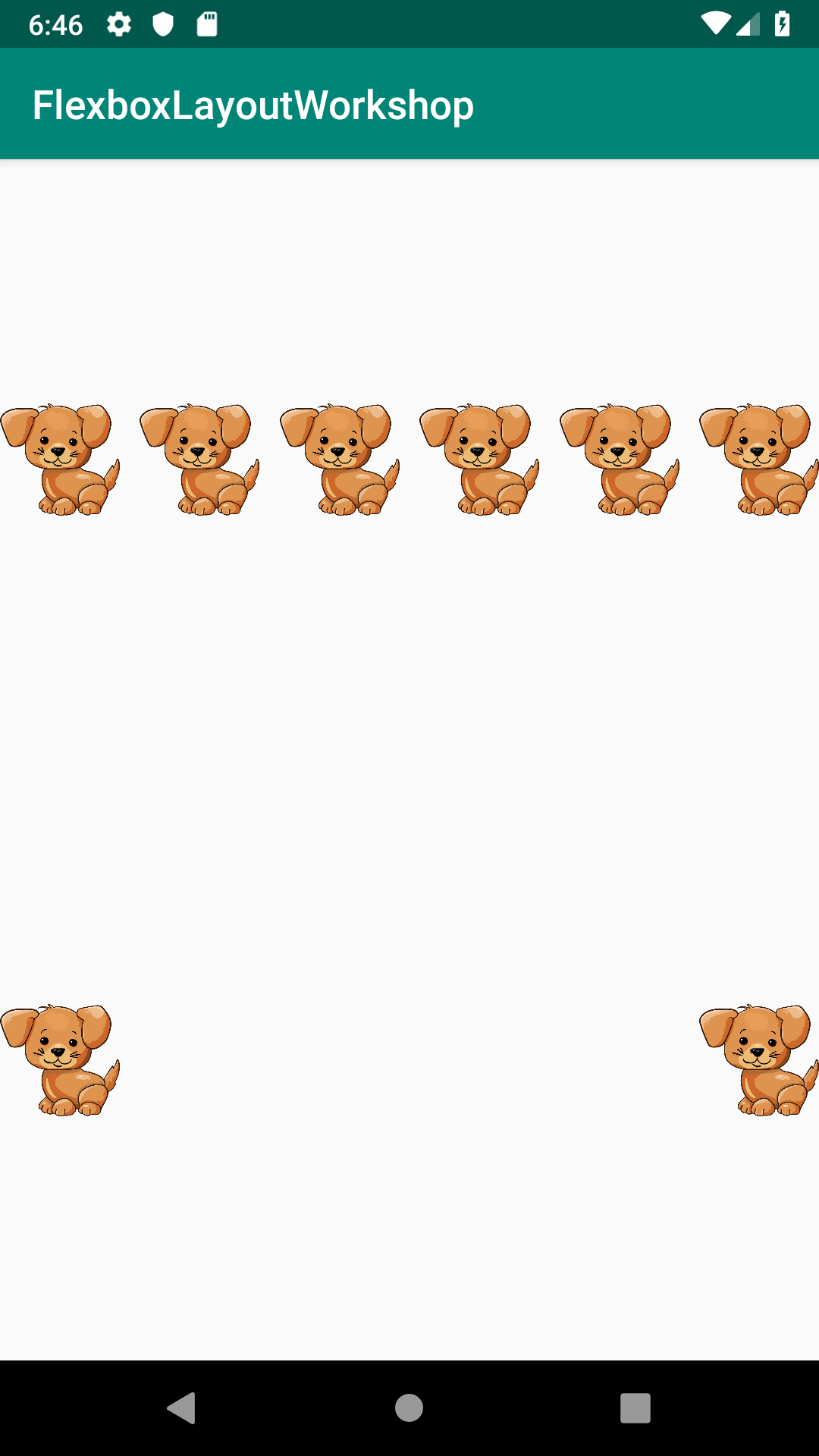

That should look like this:
Change it to :
app:alignItems="flex_end"

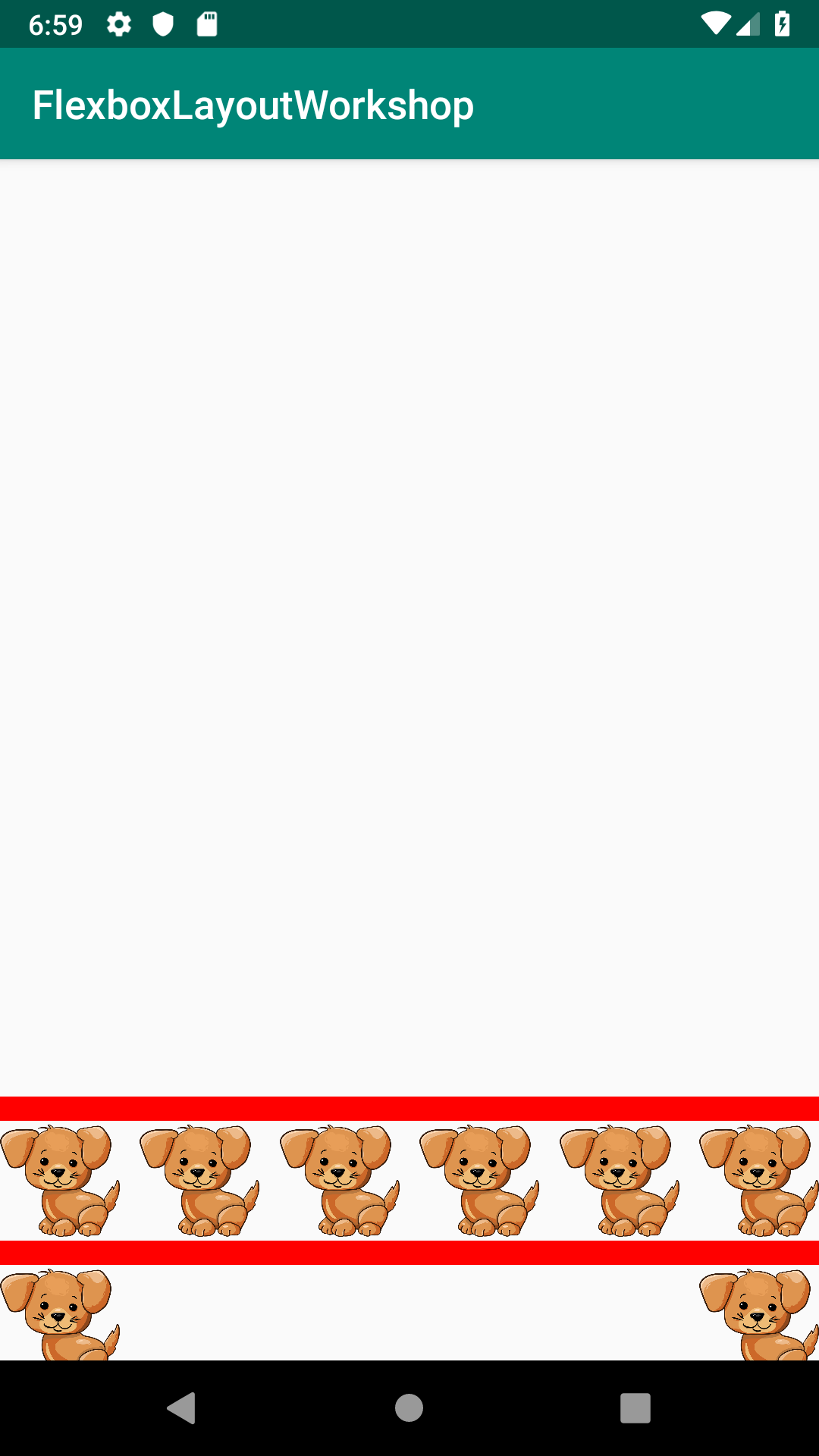

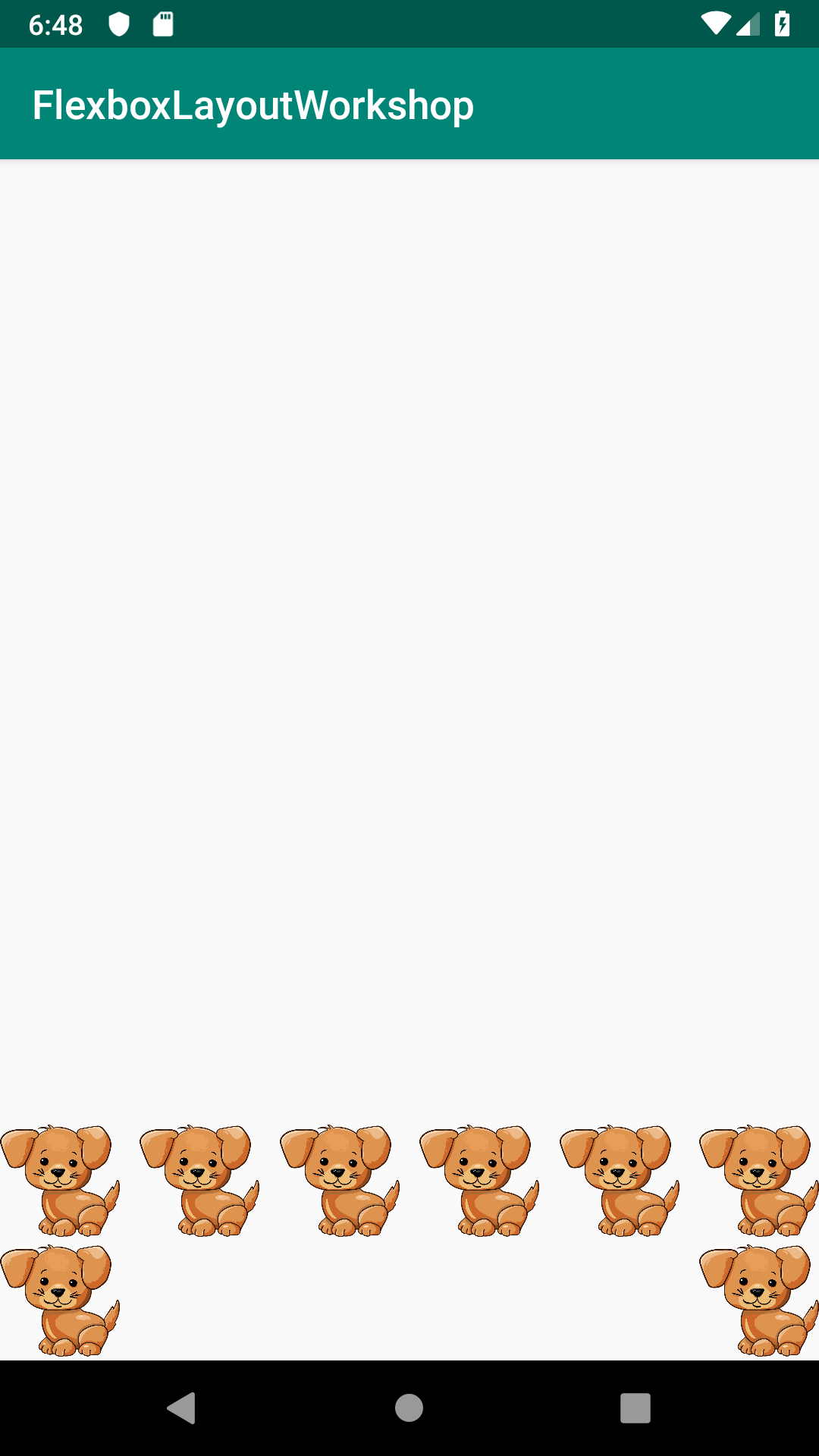

That should look like this:
Here is the code for the next step:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="space_between"
app:alignItems="center"
app:alignContent="flex_end"
>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
With FlexboxLayout You can add dividers in between your items. You have horizontal and vertical dividers.
For Each direction you can specify a different drawable and a set of attributes.
Let's get our hands dirty :)
You will use two drawables as dividers.
Go to res -> drawable ,and create two new resource XML files under the names : vertical_divider.xml and horizontal_divider.xml.
Copy the following to vertical_divider.xml :
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<size
android:width="8dp"
android:height="12dp" />
<solid android:color="#00FF21" />
</shape>
Copy the following to horizontal_divider.xml :
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<size
android:width="8dp"
android:height="12dp" />
<solid android:color="#FF0000" />
</shape>
Add an horizontal divider by doing the following :
Go to res -> activity_main.xml, and add the following line inside your FlexboxLayout:
app:dividerDrawableHorizontal="@drawable/horizontal_divider"
Next, you need to specify how do you want the dividers to appear.
You will do that by a combination of one or more of the attributes :
- none
- beginning
- middle
- end
Add the following line inside your FlexboxLayout:
app:showDividerHorizontal="middle|beginning"

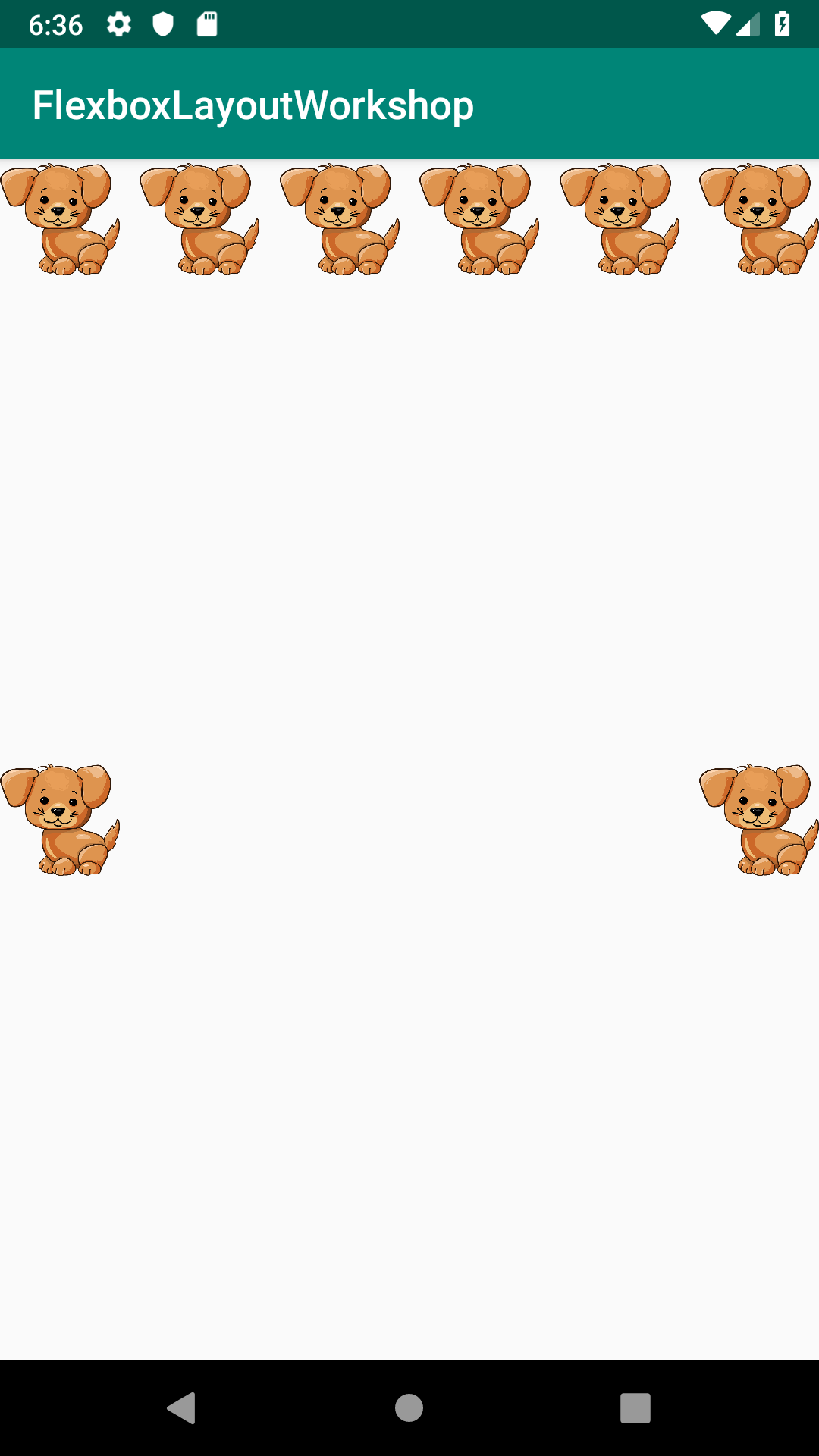

That should look like this:
Try play alonog with the parameters.
Add the following lines inside your FlexboxLayout in order to set a vertical divider.:
app:dividerDrawableVertical="@drawable/divider_vertical"
app:showDividerVertical="middle"

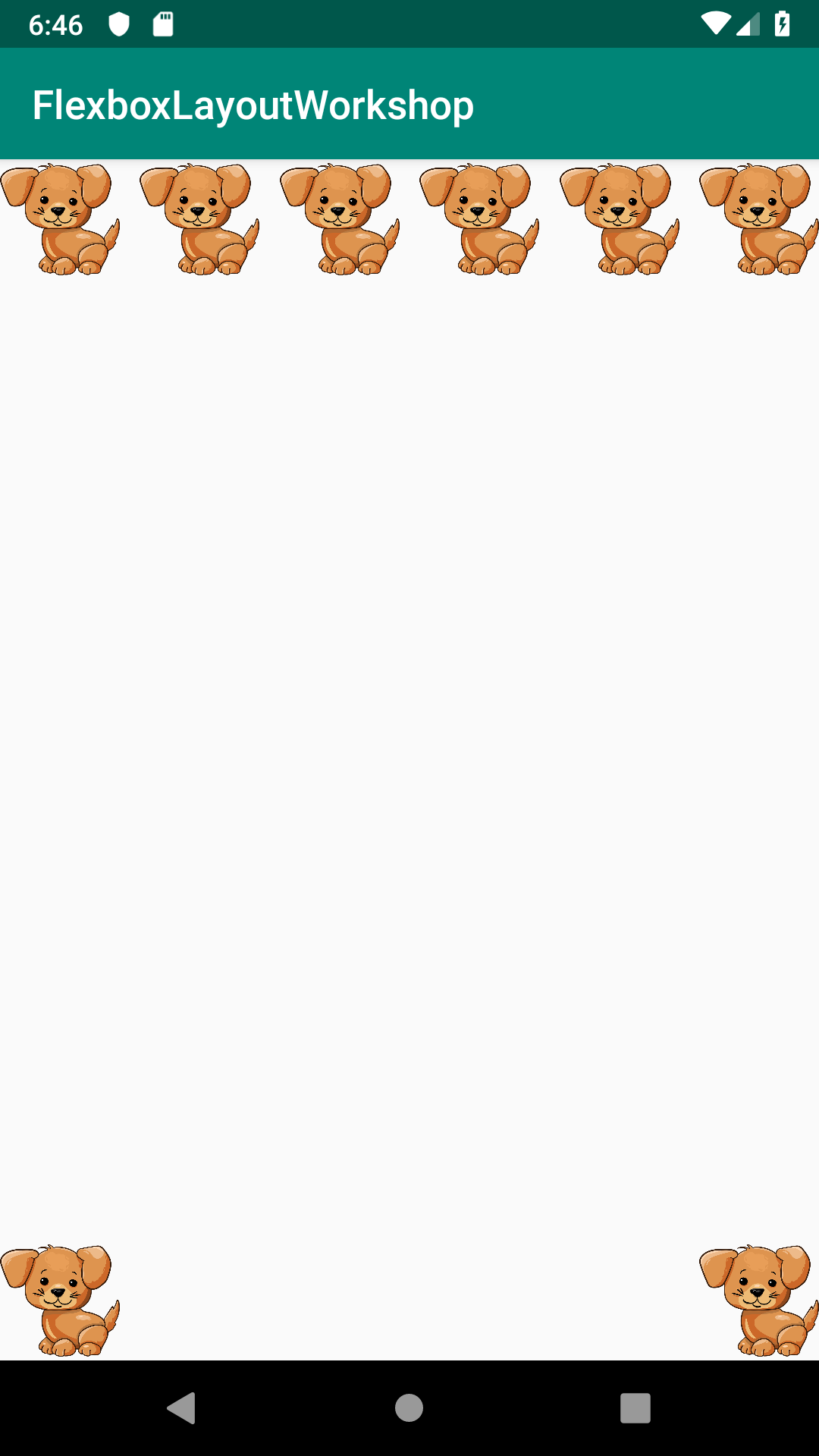

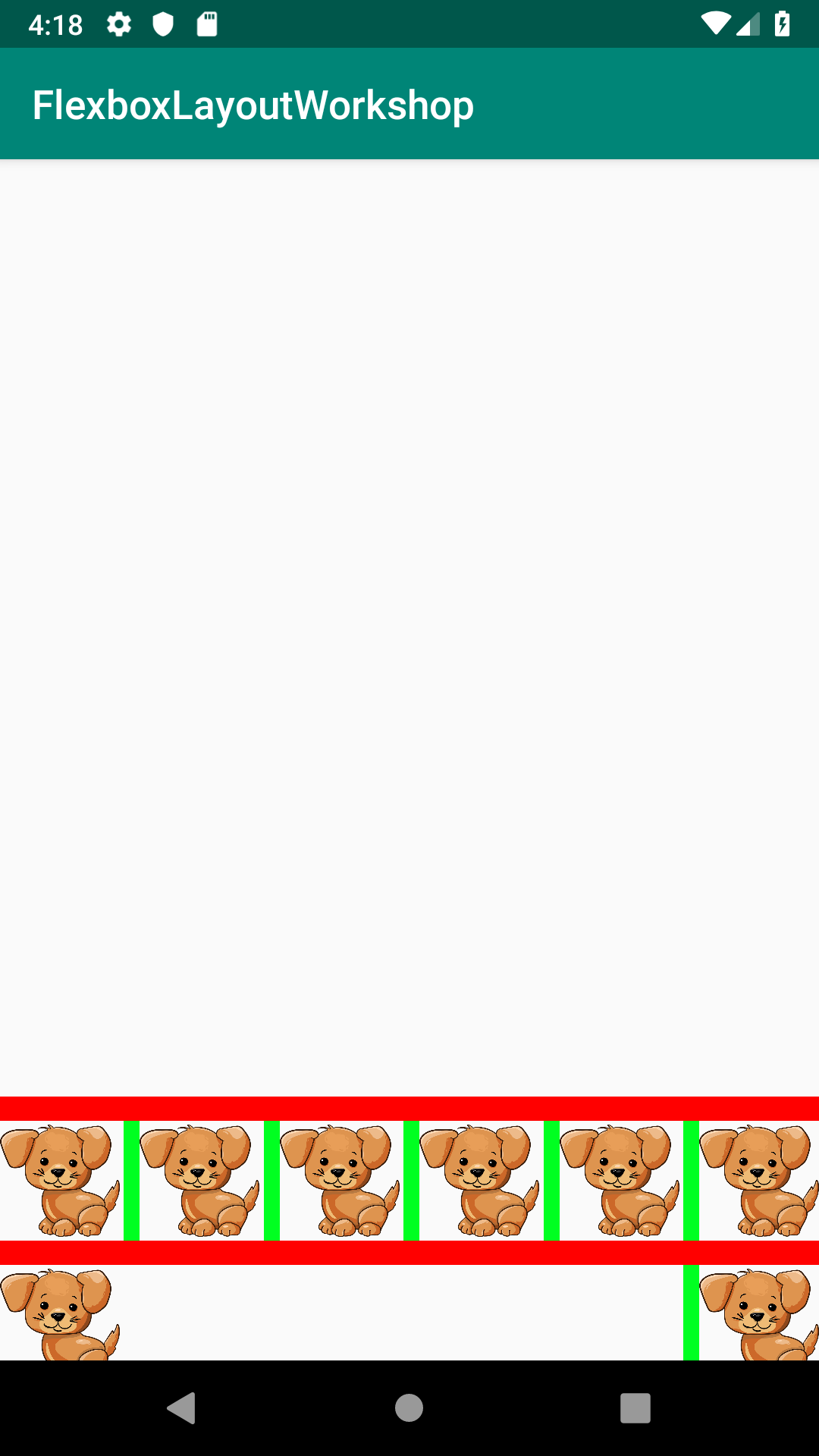

That should look like this:
You can also set one divider and one behavior for both vertical and horizontal dividers.
Up until now we tried all kinds of setups FlexboxLayout has to offer as a layout.
The next steps will cover the set of behaviors FlexboxLayout offers to its children.
The chapters from now on will be focused on the abilities that FlexboxLayout grant it children.
Go to res -> activity_main.xml, and add the following inside your ConstraintLayout root view :
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="flex_start"
app:alignItems="center"
app:alignContent="flex_start">
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>
</com.google.android.flexbox.FlexboxLayout>

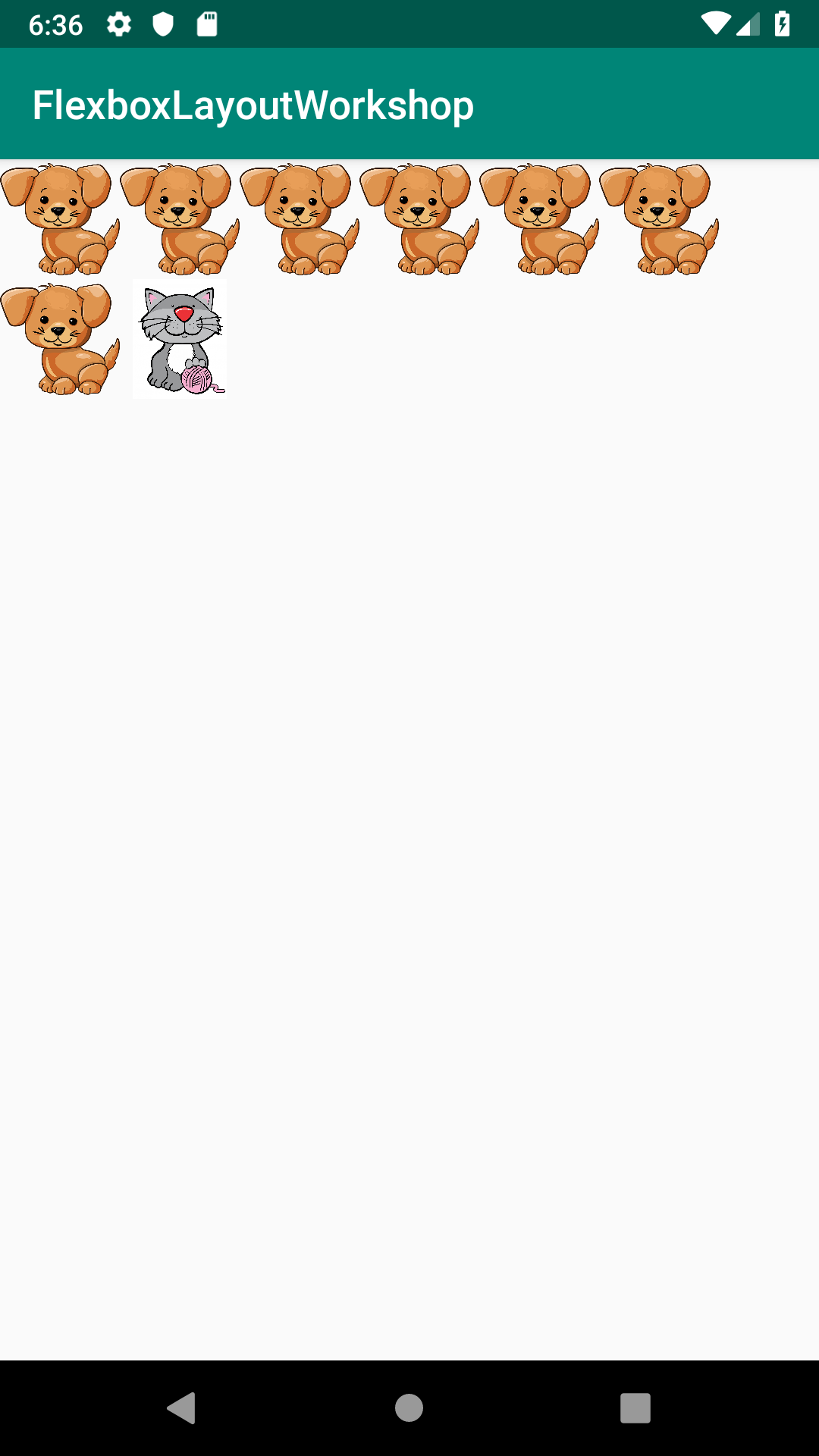

Your app should look like this now :
Pay attention we have now a cute little cat as our last child.
Say you to control the order of your items...
For example - to make the cat be first child, before all the dogs.
For that porpse, you will use layout_order attribute.
In your layout, go to the last child (the one with the cat drawable), and add the following line:
app:layout_order="1"
Nothing happened?? that is because 1 is the default value for items that without layout_order set.
Change the line to:
app:layout_order="0"

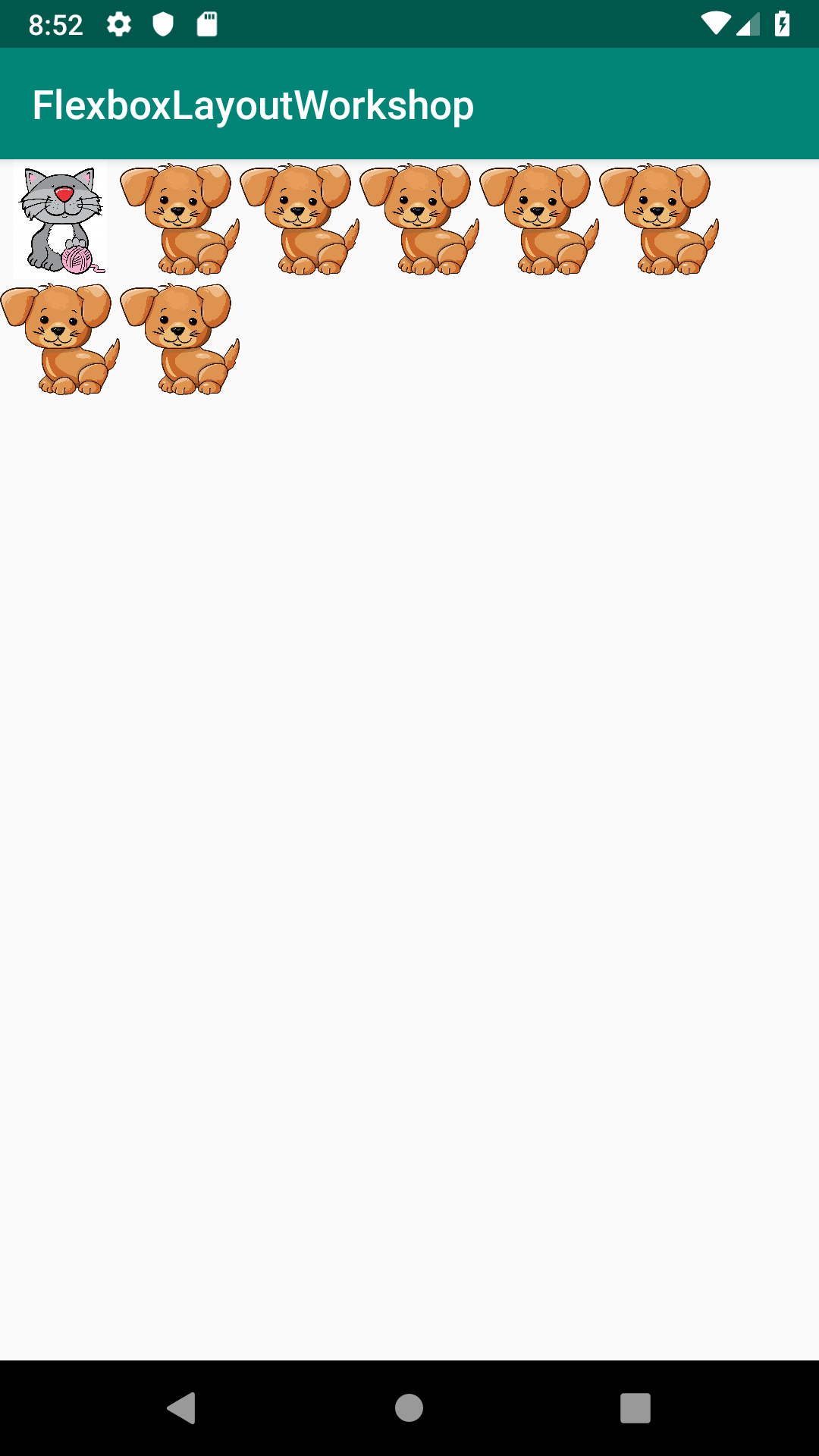

Your app should look like this now :
For the next chapter you will need to set your layout as following:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="flex_start"
app:alignItems="center"
app:alignContent="flex_start"
app:dividerDrawable="@drawable/divider_vertical"
app:showDivider="middle|beginning|end">
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>
</com.google.android.flexbox.FlexboxLayout>
As FlexboxLayout arrange the item one by one, sometimes you there will be a gap between the last item and the rest of the layout or between items.
This gap can be filled by spreading an item along it.
You will use layout_flexGrow attribute for that. FlexboxLayout will calculate the gap on each flex line, and divide it between the items that specified the layout_flexGrow proportionally to their value (For those who familiar with LinearLayout, the behavior is similar to layout_weight attribute).
In your layout, go to the last child (the one with the cat drawable), and add the following line:
app:layout_flexGrow="2.0"
So the item will look like:
<ImageView
app:layout_flexGrow="2.0"
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>

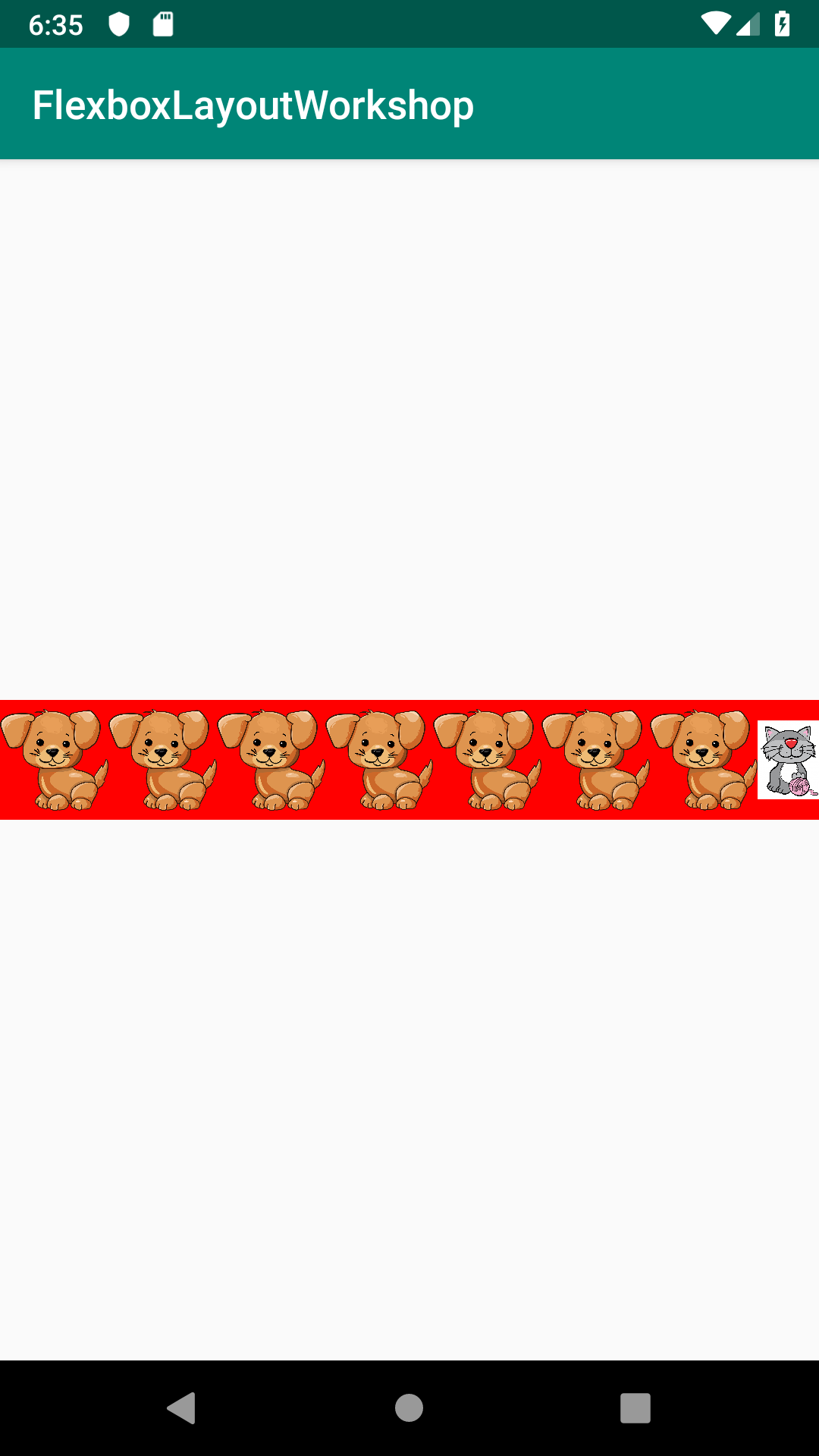

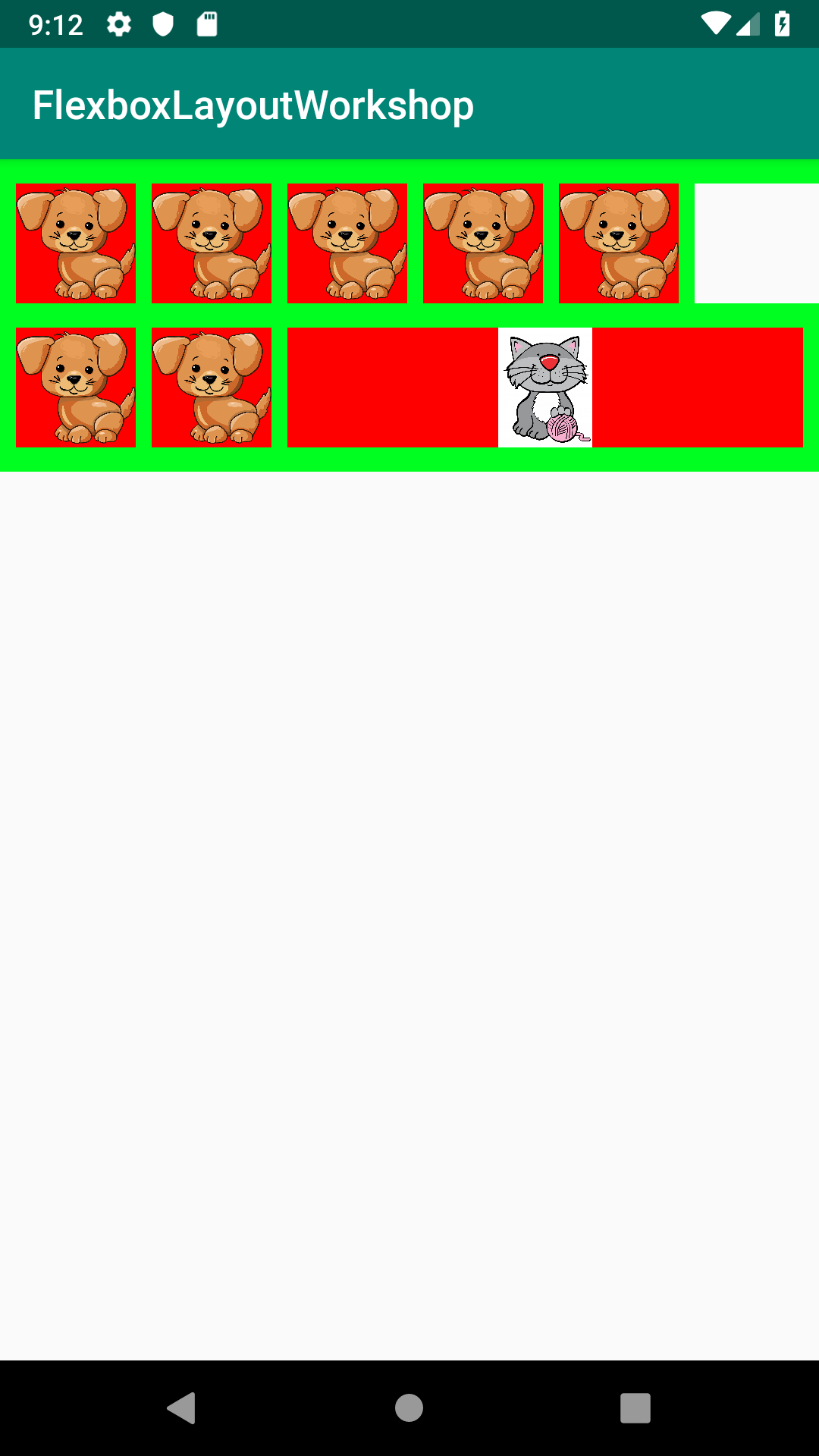

Your app should look like this now :
In your layout, go to the one before the cat item, and add the following line:
app:layout_flexGrow="7.0"

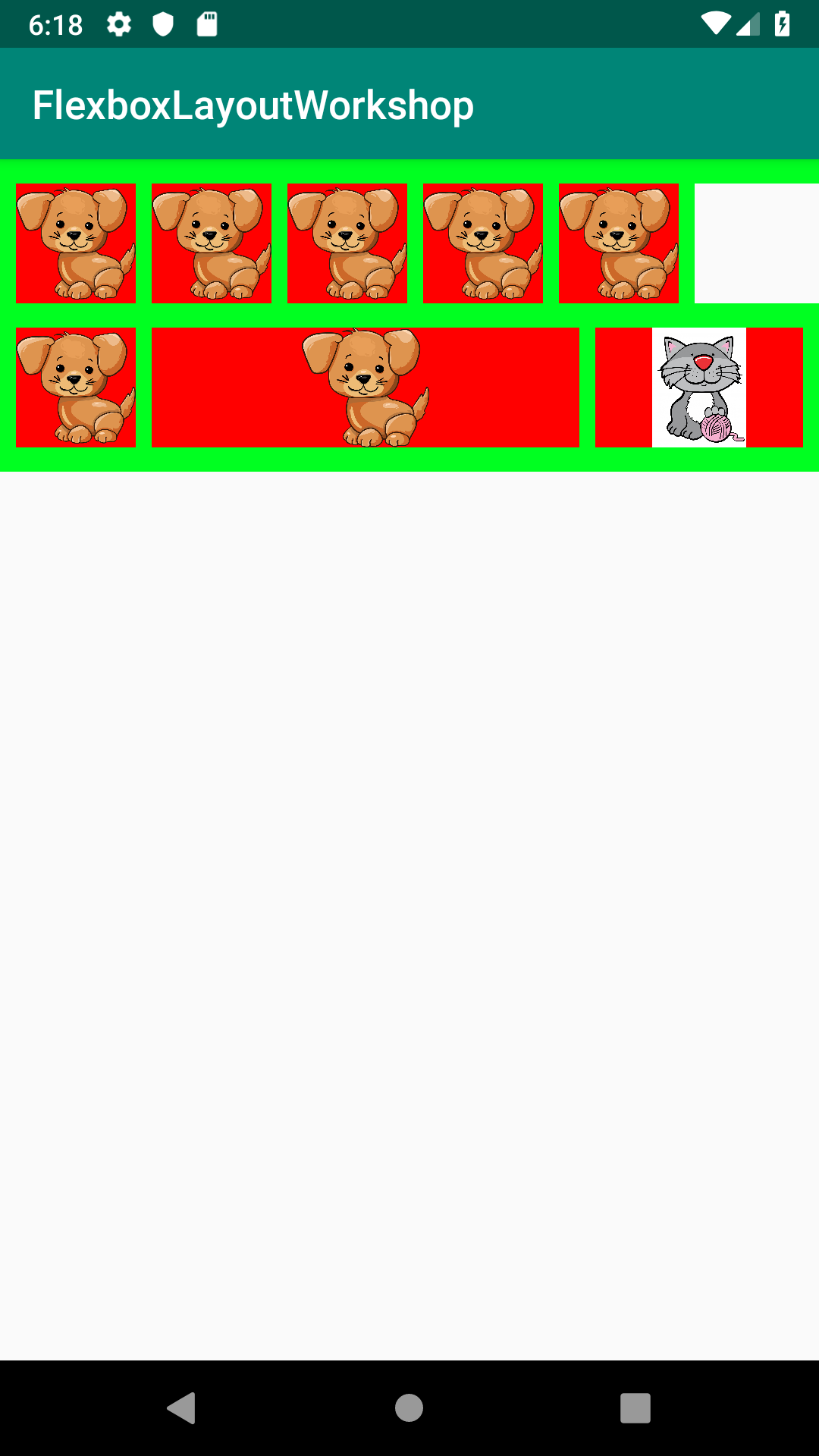

Your app should look like this now :
In flexWrap chapter, you learned that when FlexboxLayout specifies that app:flexWrap="nowrap", the layout will be single line. That means that whenever you will add a new item, if there is not enough space - FlexboxLayout will make the items shrink so that they all will fit inside.
By using layout_flexShrink we can control this operation and define which items will get shrink and how much.
Bare in mind that the default value here is 1, so each undefined item will get value of 1.
Go to res -> activity_main.xml, and add the following inside your ConstraintLayout root view :
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="nowrap"
app:justifyContent="flex_start"
app:alignItems="center"
app:alignContent="flex_start"
>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>
</com.google.android.flexbox.FlexboxLayout>

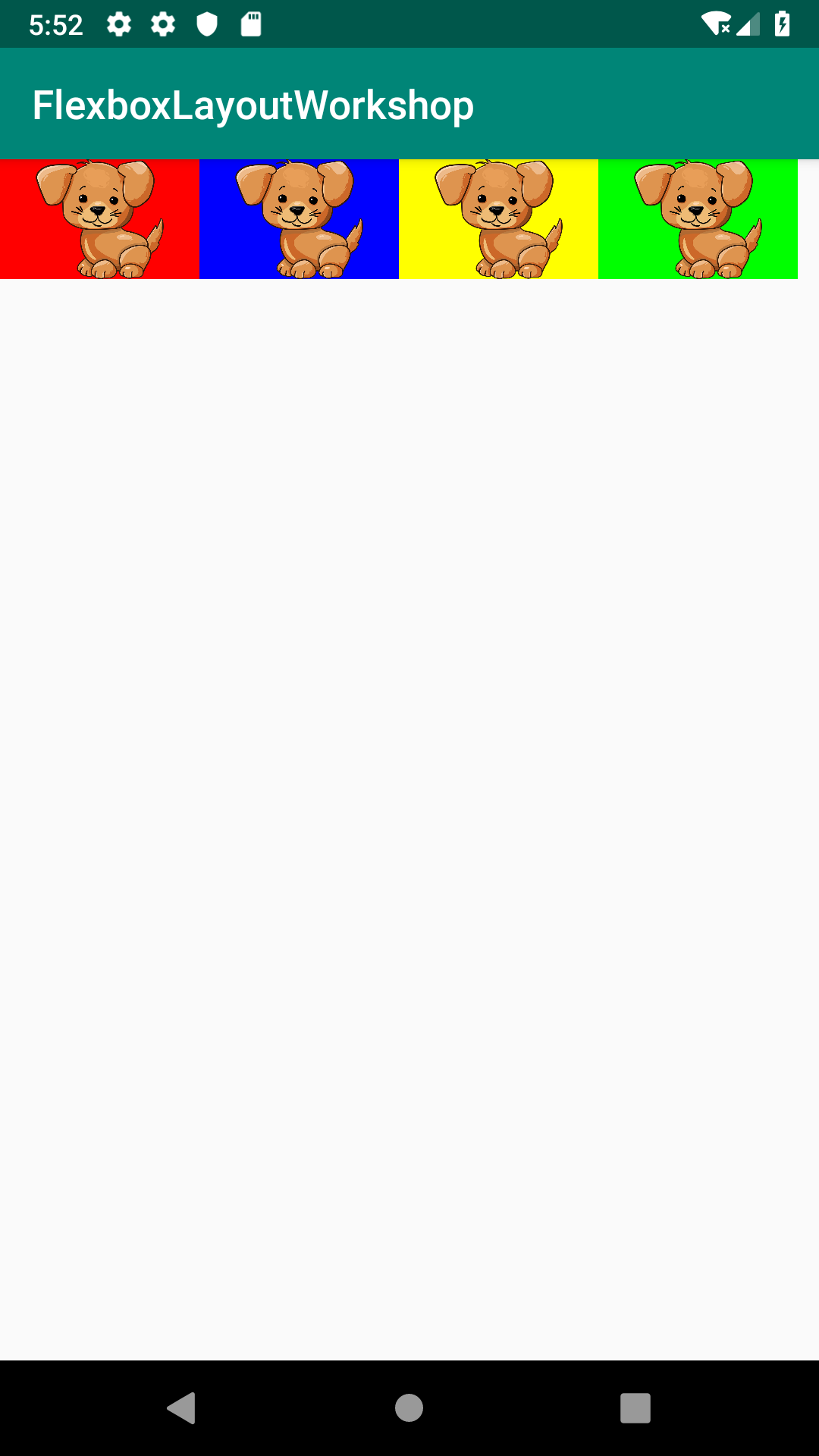

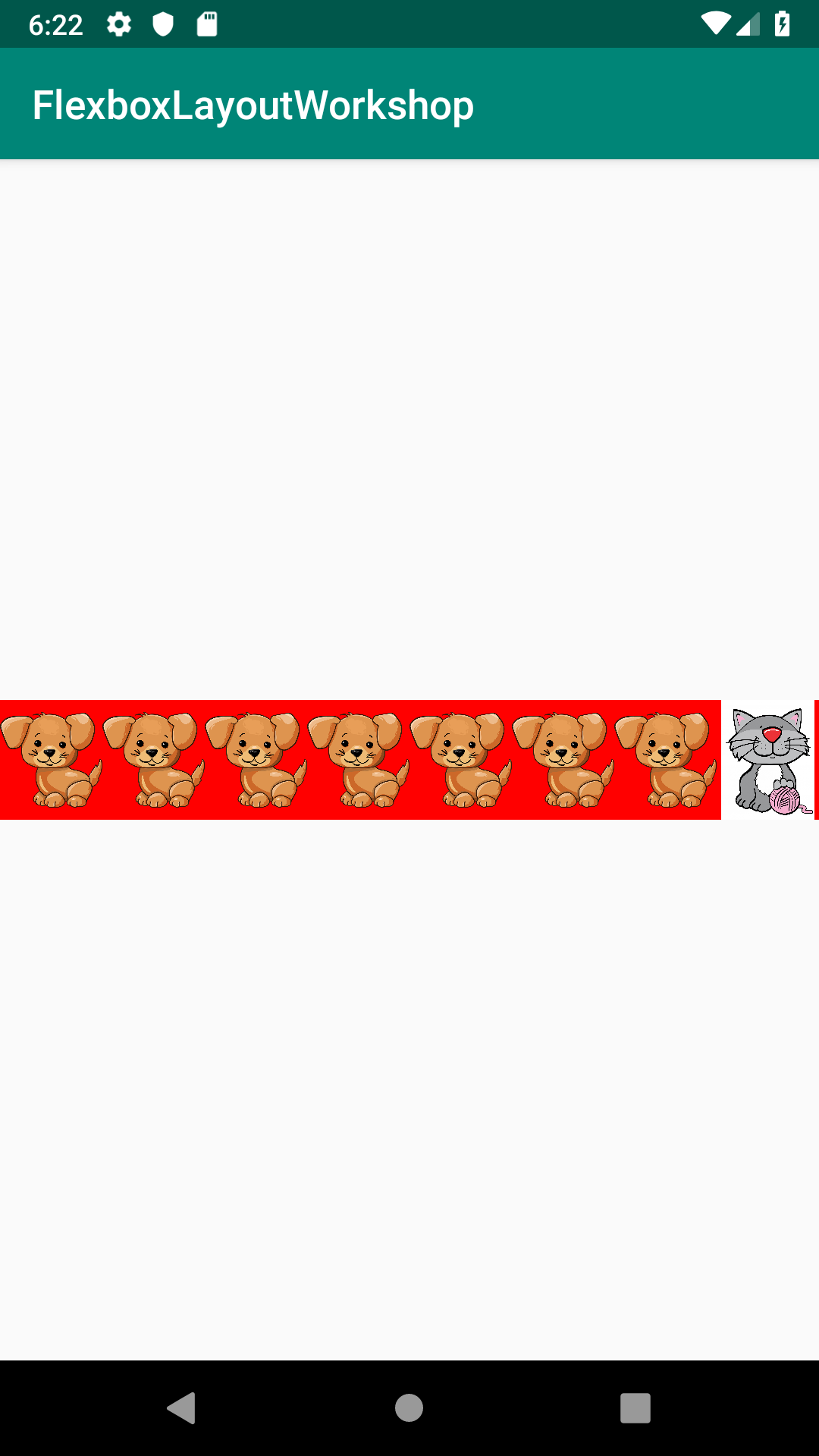

Your app should look like this now :
If for example the cat is not so important, you can say that when there is not enough space, the cat will get shrink by 5 times more than the other items (since thier value is 1 and we are setting the cat's to 5) of the other items by adding the following line to its ImageView:
app:layout_flexShrink="5"
The ImageView should be define like this:
<ImageView
app:layout_flexShrink="5"
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>

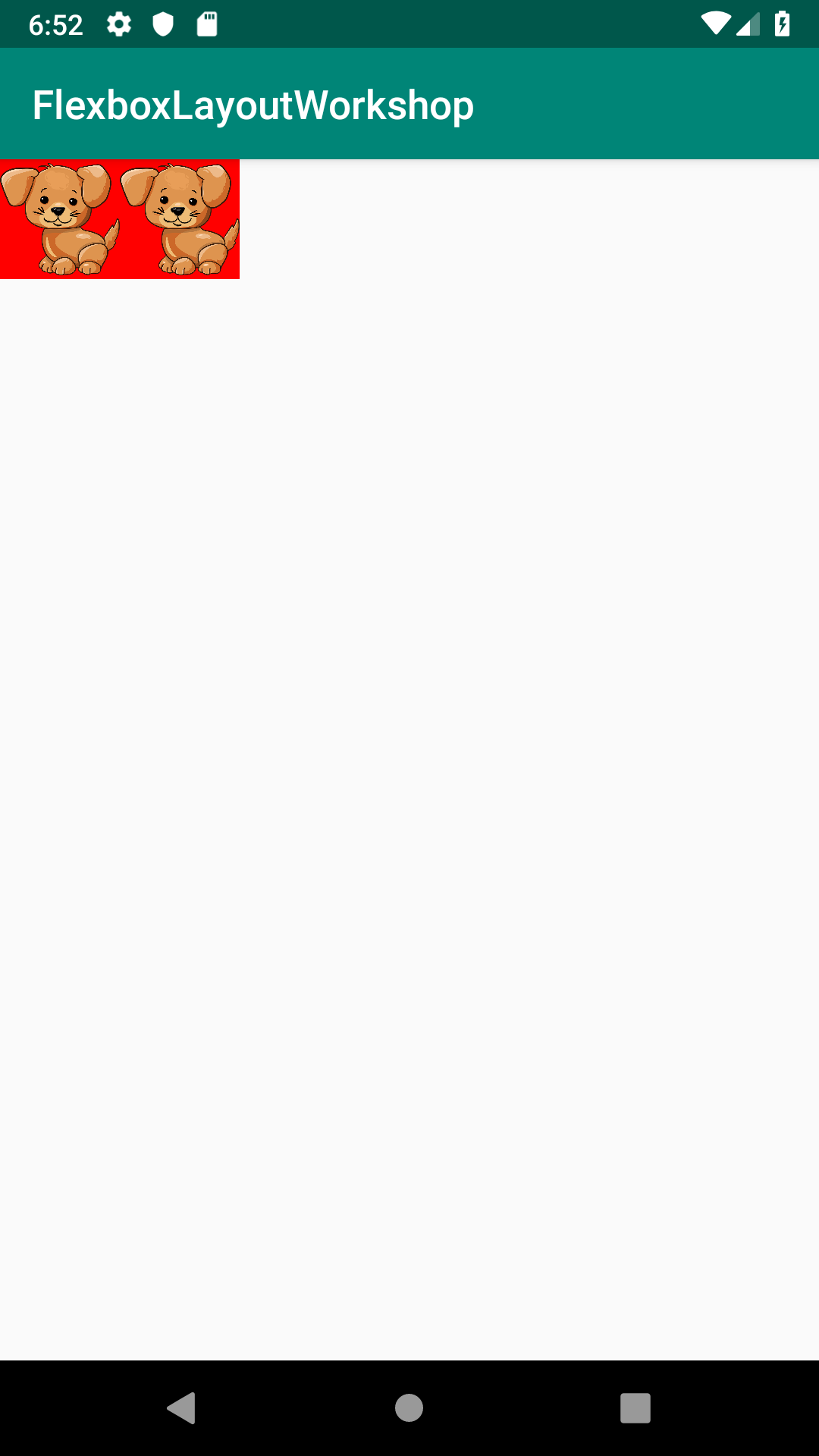

Your app should look like this now :
In the chap above we mentioned that the differences between justifyContent and alignItems is that the first controls the behavior of the main axis, while the second handles the cross axis.
These attributes handles the direction of order on parent lavel.
Sometimes you will want to have a more specific direction handling, layout_alignSelf will help you achieve that on a child level.
For the current demonstration, take the following layout:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="flex_start"
app:alignItems="flex_start"
app:alignContent="flex_start">
<ImageView
android:background="#FF00"
android:layout_width="160dp"
android:layout_height="160dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/cat"/>
</com.google.android.flexbox.FlexboxLayout>

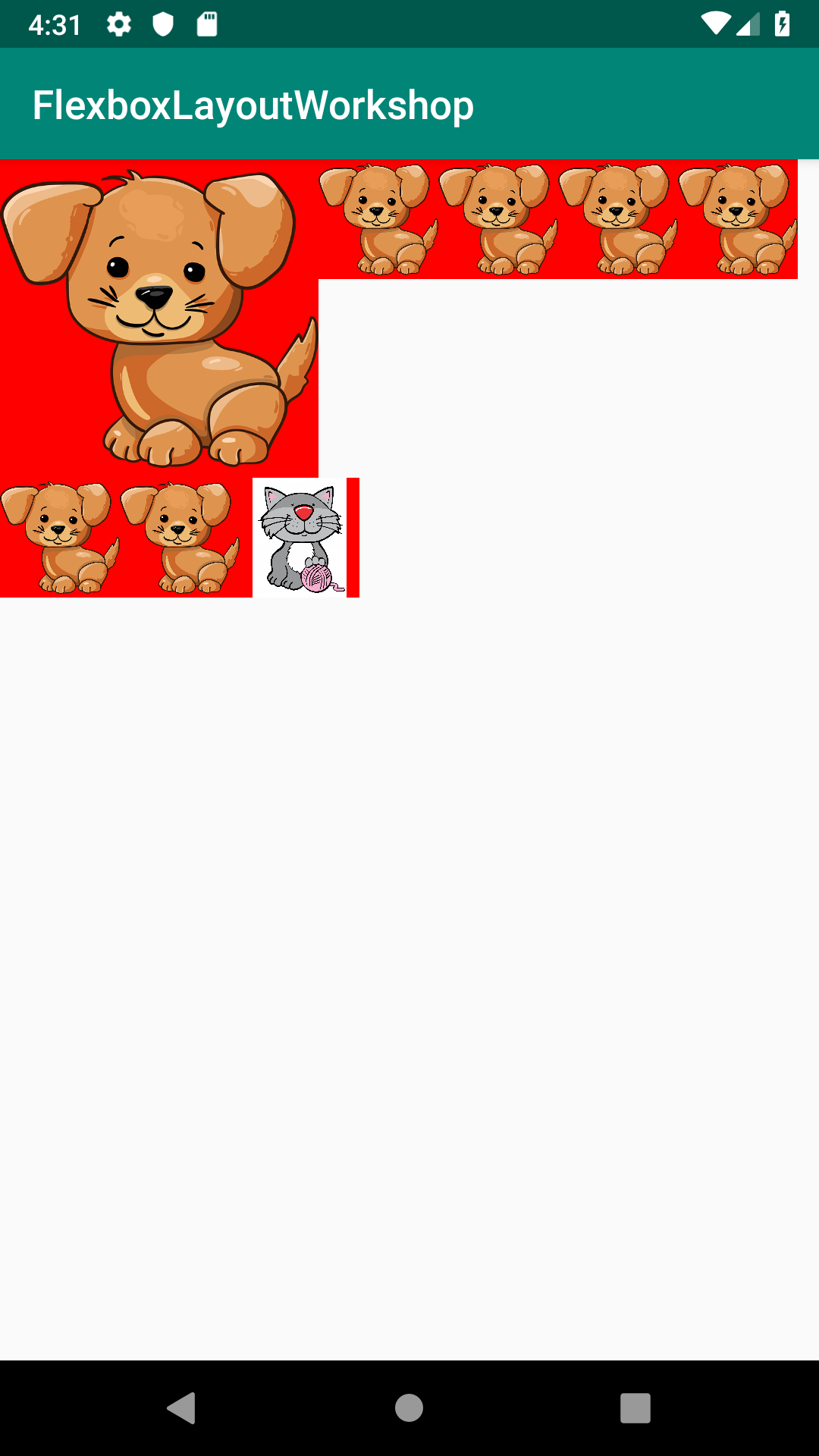

It should look like the following:
Add the following line to the second child:
app:layout_alignSelf="flex_end"
The item shloud look like this:
<ImageView
app:layout_alignSelf="flex_end"
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>

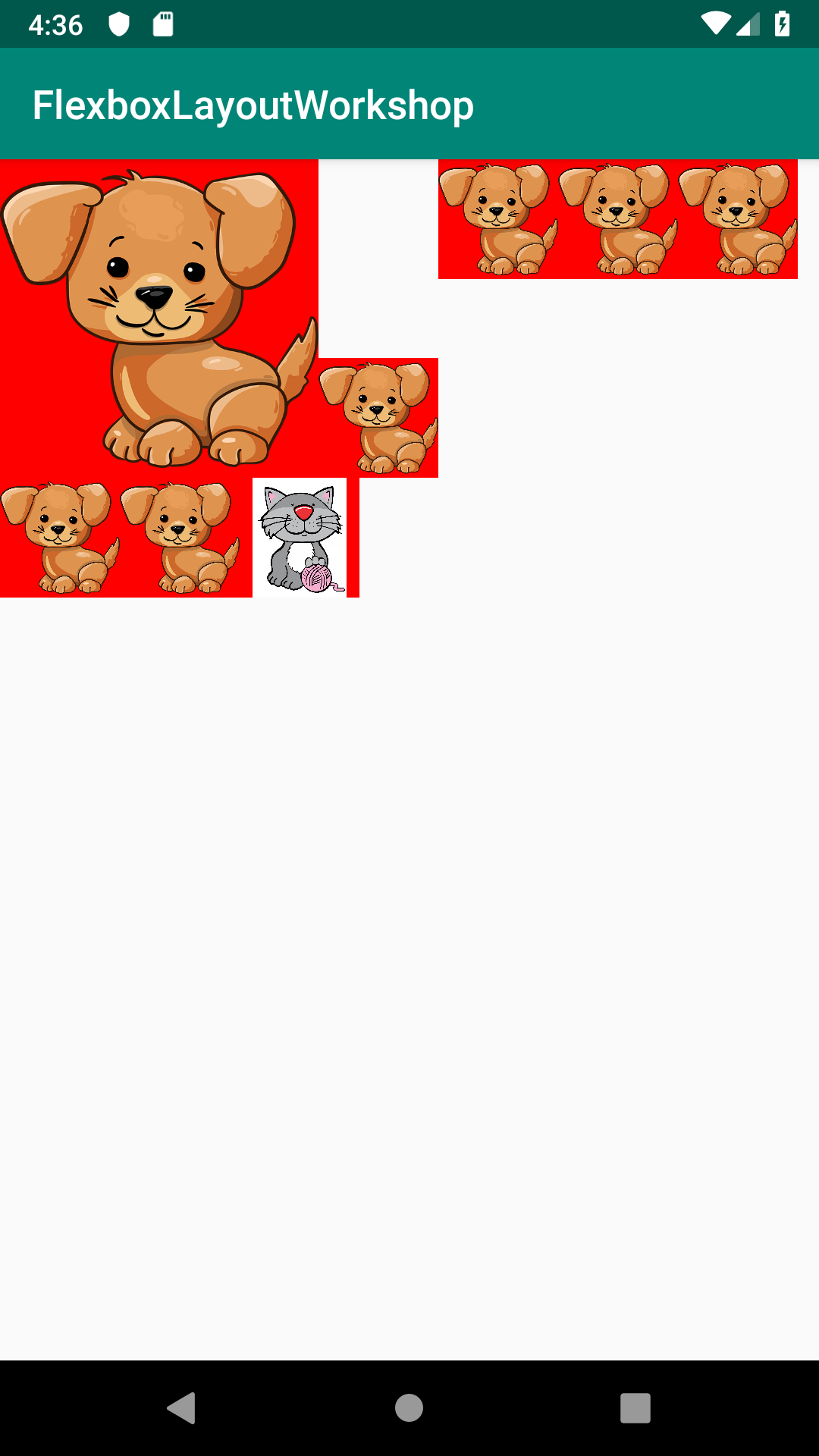

And your app should look like this:
You can play around with the parameters:
- auto
- flex_start
- flex_end
- center
- baseline
- stretch
In case that you want to determine the length of an item based on its parent, layout_flexBasisPercent will solve your problem here.
The length here refers to the main axis.
Note : It will not work for parent with layout_width="wrap_content".
For the current demonstration, take the following layout:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="flex_start"
app:alignItems="flex_start"
app:alignContent="flex_start">
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
It should look like the following:
Add the following line to the second child:
app:layout_flexBasisPercent="50%"
Be aware to the %. Yes oddly you need to add that sign to the value.
So, your second child should look like this:
<ImageView
app:layout_flexBasisPercent="50%"
android:background="#FF00"
android:layout_width="60dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>

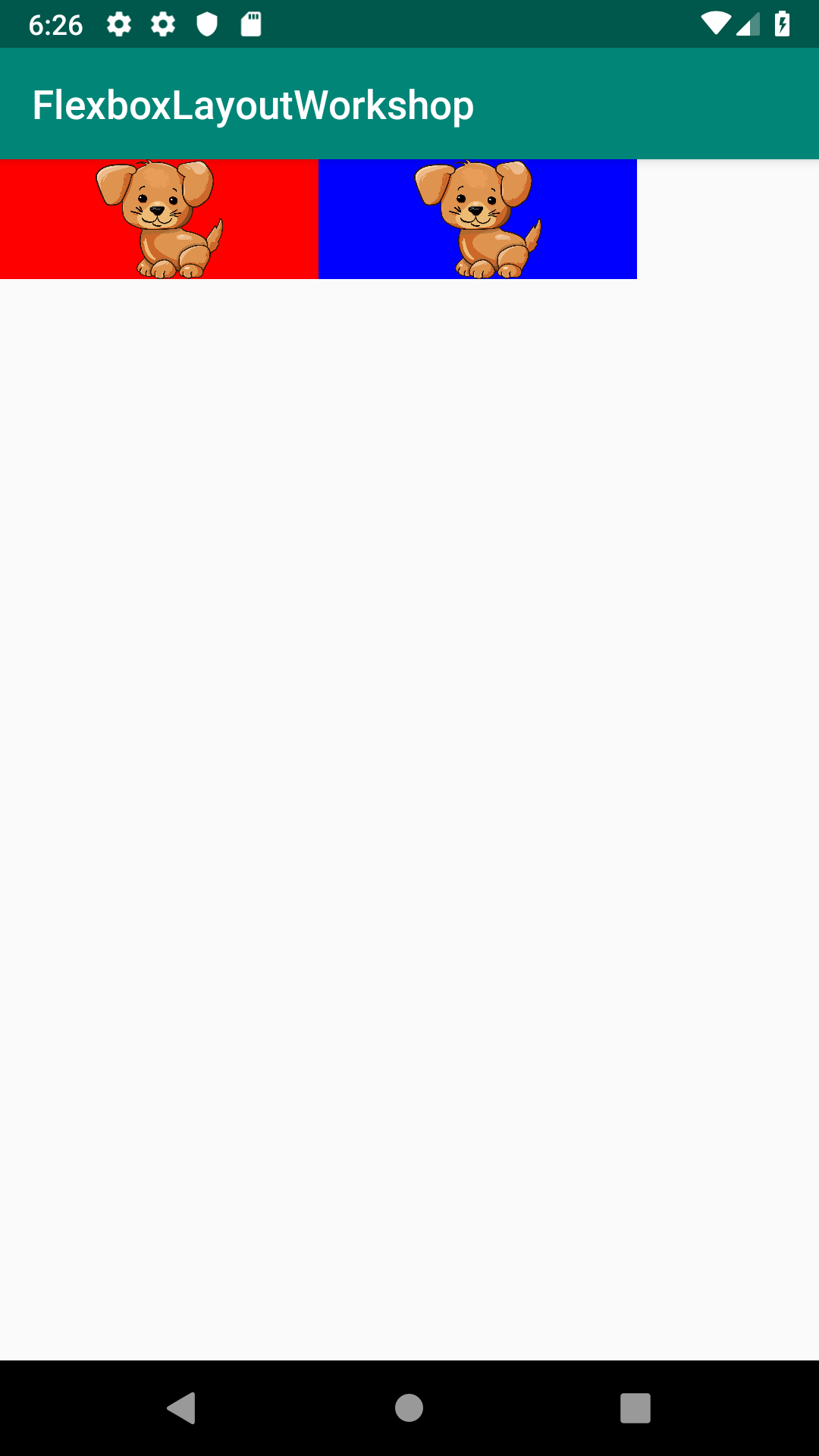

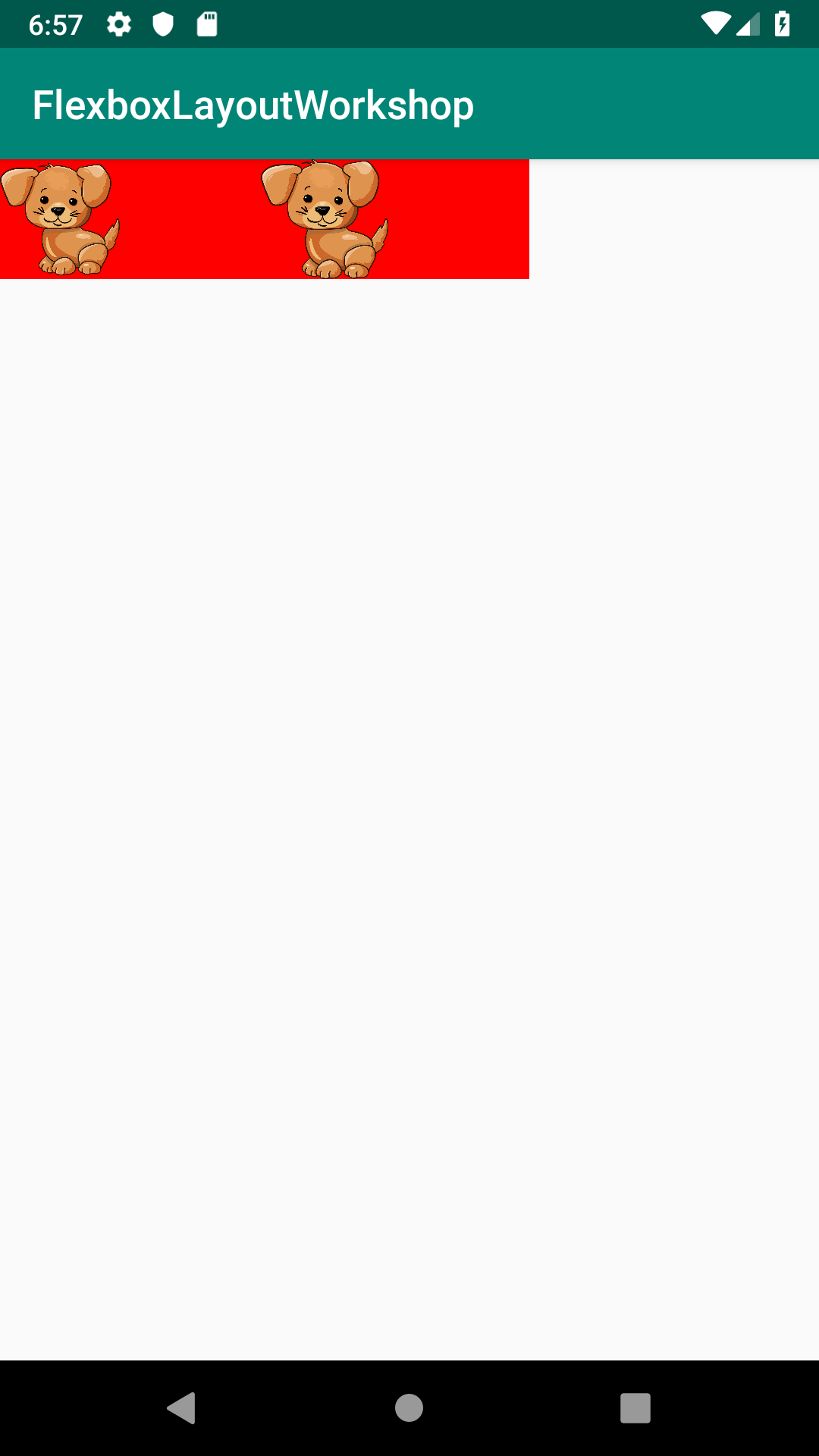

And your app should look now like the following:
The second now has a width of 50% of its parent.
Since FlexboxLayout will shrink items when needed, you might want to set some constraint on the shrinking behavior.
You can set a minimum width from which the view cannot get shrink.
For the current demonstration, take the following layout:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="nowrap"
app:justifyContent="flex_start"
app:alignItems="flex_start"
app:alignContent="flex_start">
<ImageView
android:background="#FF00"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#00F"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
It should look like the following:
Now, add the following two ImageViews, pay attention to how FlexboxLayout will shrink the width of all of your ImageViews equally.
<ImageView
android:background="#FFF0"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#F0F0"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
So, your FlexboxLayout should look like this:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="nowrap"
app:justifyContent="flex_start"
app:alignItems="flex_start"
app:alignContent="flex_start">
<ImageView
android:background="#FF00"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#00F"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FFF0"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#F0F0"
android:layout_width="160dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>

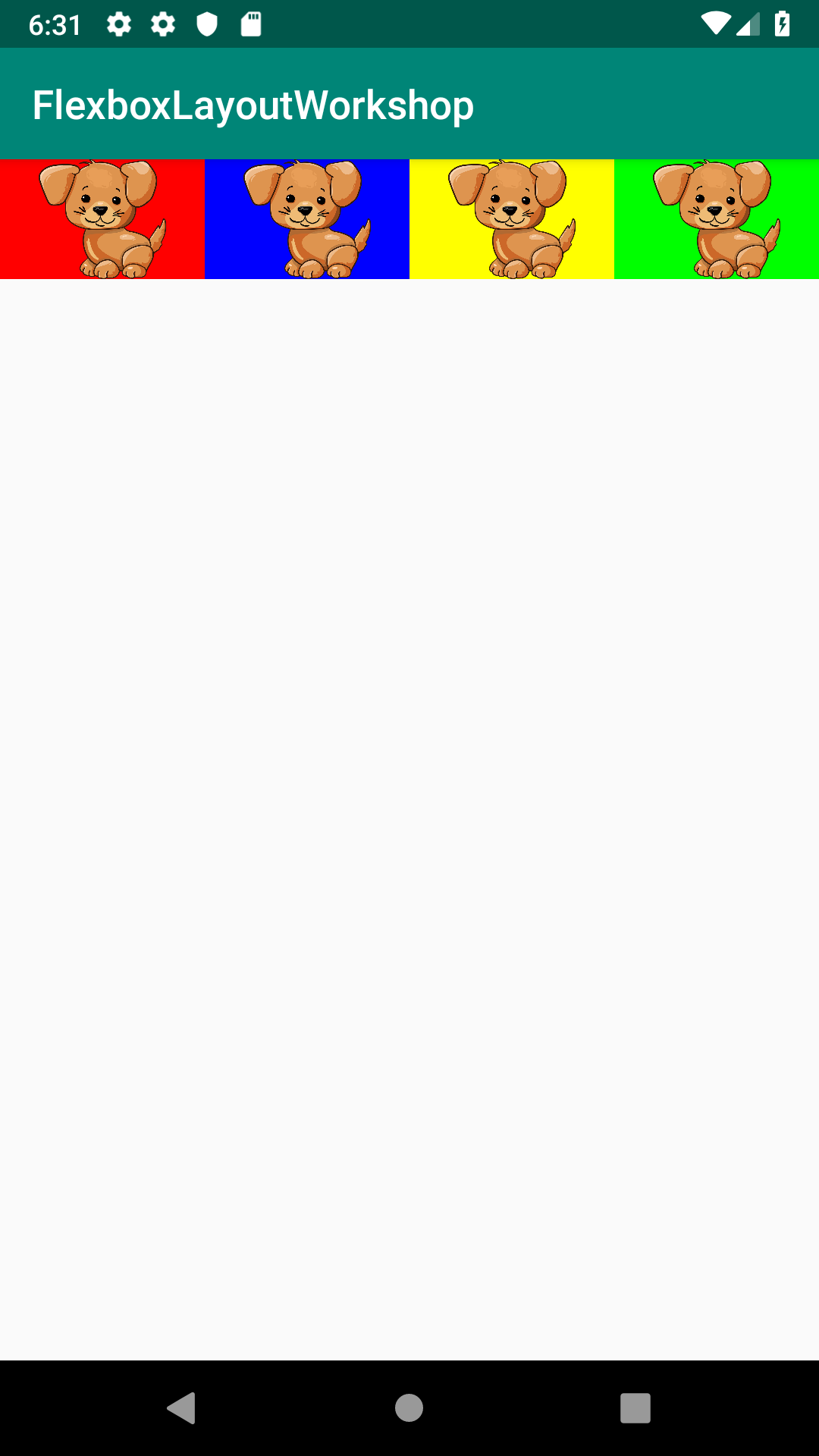

And your app should look now like the following:
Go to your second ImageView (the one with the blue background), and add the following line:
app:layout_minWidth="150dp"
Your app should look now like the following:
This way you can keep the minimum width constraint.
Similarly you can use the layout_minHeight.
With that in mind, handling the maximum is almost the same. Just use layout_maxWidth / layout_maxHeight.
As FlexboxLayout behaves like a grid, if you want to start a new flex line from a specific item, you'll do that by using layout_wrapBefore.
For the current demonstration, take the following layout:
<com.google.android.flexbox.FlexboxLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
app:flexDirection="row"
app:flexWrap="wrap"
app:justifyContent="flex_start"
app:alignItems="flex_start"
app:alignContent="flex_start">
<ImageView
android:background="#FF00"
android:layout_width="100dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#00F"
android:layout_width="100dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#FFF0"
android:layout_width="100dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
<ImageView
android:background="#F0F0"
android:layout_width="100dp"
android:layout_height="60dp"
android:src="@drawable/dog"/>
</com.google.android.flexbox.FlexboxLayout>
It should look like the following:
Go to your second ImageView (the one with the blue background), and add the following line:
app:layout_wrapBefore="true"

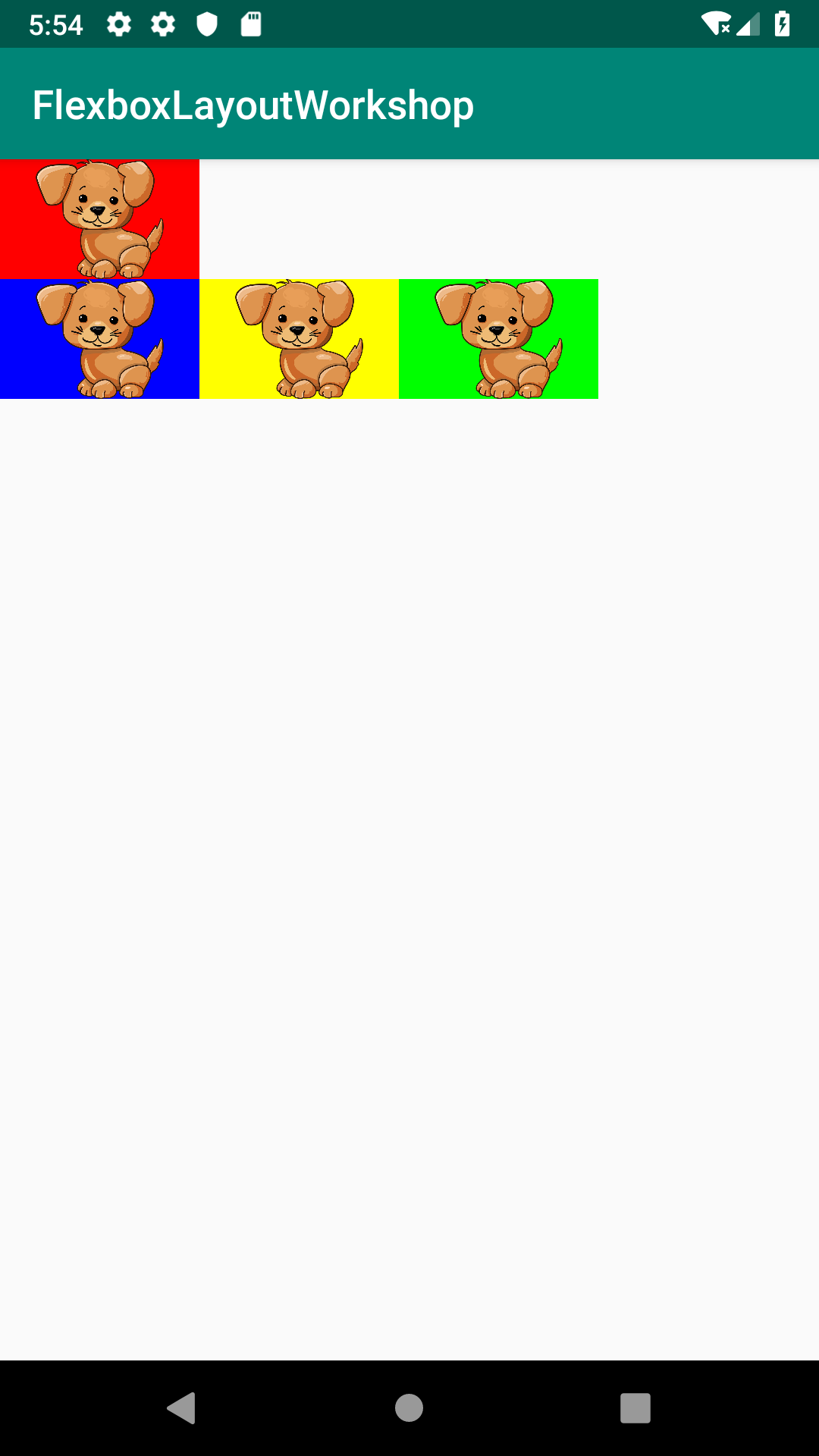

Your app should look now like the following:
As you can see, this attribute ‘broke' the line.
Note: It will not work for layouts which specified app:flexWrap="nowrap", since it is single line and there is now meaning for ‘breaking a line' there.
The last chapter will describe the steps of using FlexboxLayout as LayoutManager.
The advangtage here is that you have a scrollable View that can host an infinite number of them with the abilities of Flexbox.
You will start by changing the layout to the following:
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
xmlns:app="http://schemas.android.com/apk/res-auto"
tools:context=".MainActivity">
<androidx.recyclerview.widget.RecyclerView
android:id="@+id/recycler_view"
android:layout_width="match_parent"
android:layout_height="0dp"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintBottom_toTopOf="@id/add_item_button"/>
<Button
android:id="@+id/add_item_button"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="Add an Item"
app:layout_constraintBottom_toBottomOf="parent"/>
</androidx.constraintlayout.widget.ConstraintLayout>
We have a Recyclerview and a Button.
Next thing you need is to define how a single item will look like.
Go to res -> drawable ,and create new resource XML file under the name : item_background.xml.
Copy the following into item_background.xml:
<?xml version="1.0" encoding="UTF-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<stroke android:width="2dp" android:color="#ac5c23" />
<corners android:radius="12dp"/>
<solid android:color="#ffbb00" />
</shape>
Go to res -> layout ,and create new resource XML file under the name : item.xml.
Copy the following into item.xml:
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
tools:context=".MainActivity">
<TextView
android:id="@+id/text"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello World!"
android:background="@drawable/item_background"
android:padding="15dp"
android:layout_margin="5dp"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
app:layout_constraintTop_toTopOf="parent"/>
</androidx.constraintlayout.widget.ConstraintLayout>
Last setup step is to create a simple Adapter for the Recyclerview:
Create a new class called SimpleAdapter and fill it with the following:
class SimpleAdapter(private val mItems: ArrayList<String>) : RecyclerView.Adapter<SimpleAdapter.DivItemViewHolder>() {
override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): SimpleAdapter.DivItemViewHolder {
val view = LayoutInflater.from(parent.context)
.inflate(R.layout.item, parent, false)
return DivItemViewHolder(view)
}
override fun onBindViewHolder(holder: DivItemViewHolder, position: Int) {
holder.onBind(position)
}
override fun getItemCount(): Int {
return mItems.size
}
inner class DivItemViewHolder constructor(itemView: View) : RecyclerView.ViewHolder
(itemView) {
private val text: TextView = itemView.findViewById(R.id.text)
fun onBind(position: Int) {
text.text = mItems[position]
}
}
}
You will now build you LayoutManager.
Go the MainActivity, and add the following to your onCreate method:
val layoutManager = FlexboxLayoutManager(this)
layoutManager.flexDirection = FlexDirection.ROW
layoutManager.justifyContent = JustifyContent.CENTER
This is simply creates a FlexboxLayoutManager the it's main axis is ROW and these rows are arranging their item in a flexbox CENTER manner.
Keep up with the following code to set the LayoutManager to your RecyclerView:
recycler_view.layoutManager = layoutManager
Now, build a list with some content you can insert into the Adapter:
val divLikeContent = ArrayList<String>()
divLikeContent.add("Route")
divLikeContent.add("No calls during the ride")
divLikeContent.add("Smell")
divLikeContent.add("Less talk")
divLikeContent.add("Safety")
Create a SimpleAdapter and set the RecyclerView with it:
val adapter = SimpleAdapter(contentList)
recycler_view.adapter = adapter
You'll create a logic for adding an item with random amount of letters in order to illustrate how FlexboxLayoutManager arranging the items by thier size.
Set a ClickListener to the Button:
add_item_button.setOnClickListener {
contentList.add(generateRandonText())
recycler_view.adapter = adapter
}
Add the generateRandonText() method in the class scope.
private fun generateRandonText(): String {
val sb = StringBuilder()
for (i in 1 + (Math.random() * 20).toInt() downTo 1) {
sb.append("a")
}
return sb.toString()
}
Run your app and click the button.
Also, try play around with the parameters to achieve the behaviors you just learn so far.

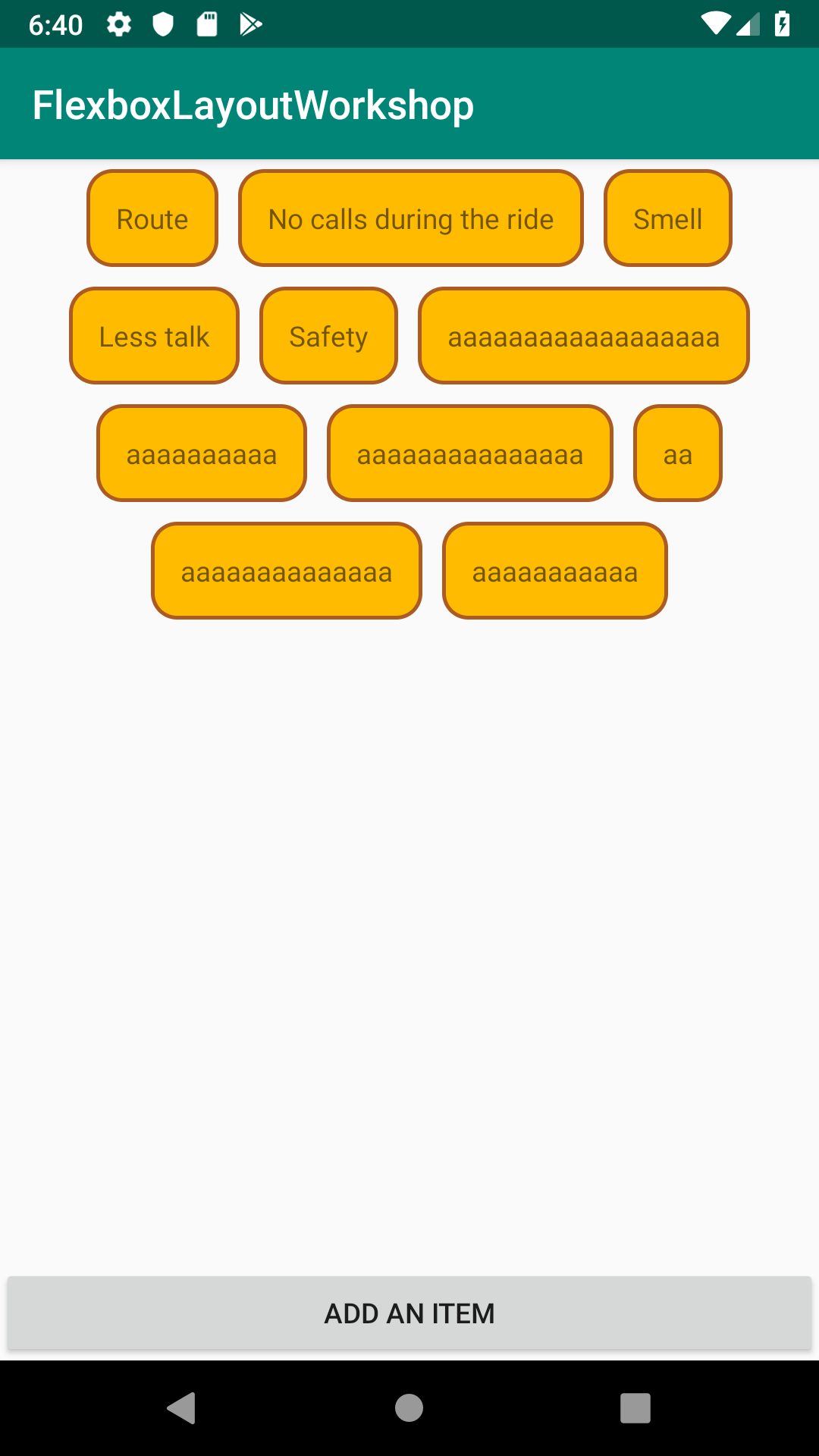

Here is an example with some random items:
Well, our journey ends here, thanks you for flying with us :)
For further questions, you are more than welcome to find me at @maozgal
