Some MotionLayout Crafts

This tutorial will walk you through creating your first MotionLayout steps.

Using MotionLayout, you'll learn the following concepts:

Basic animation in MotionLayout.
Different attributes for animations.
Photos manipulations.
Swipes.

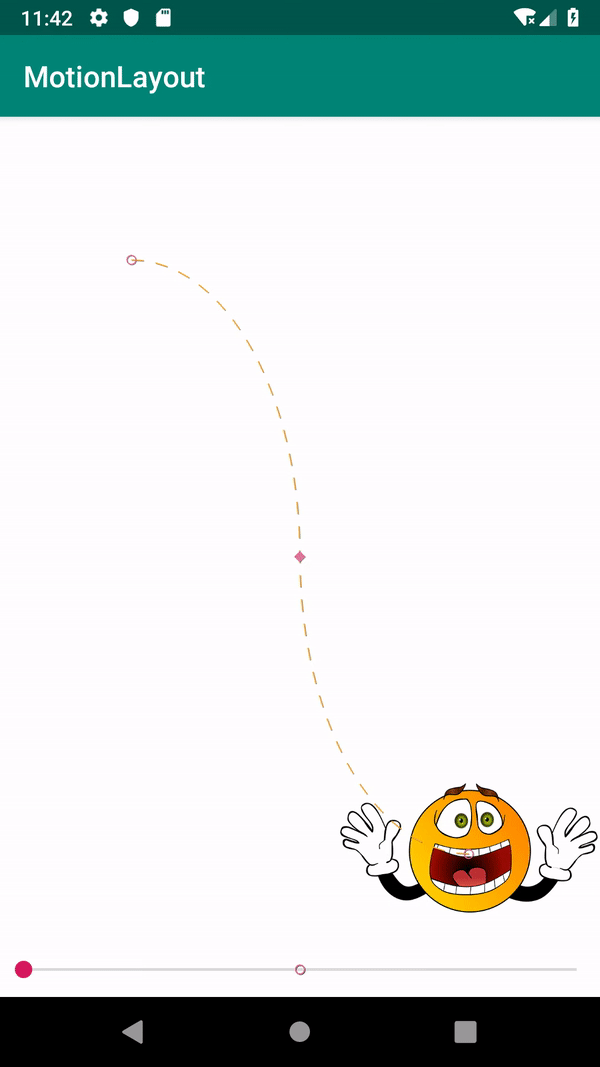

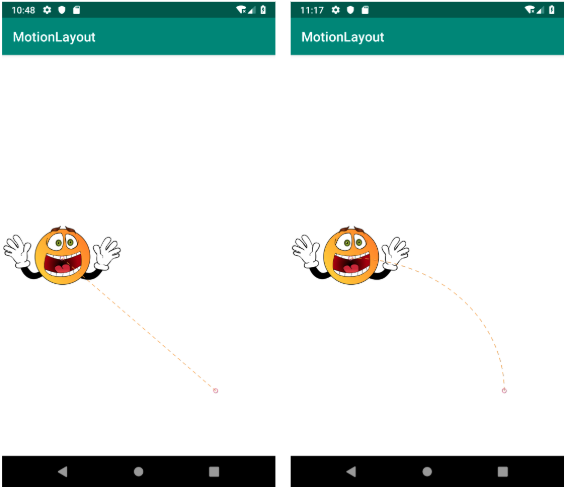

Keyframes.

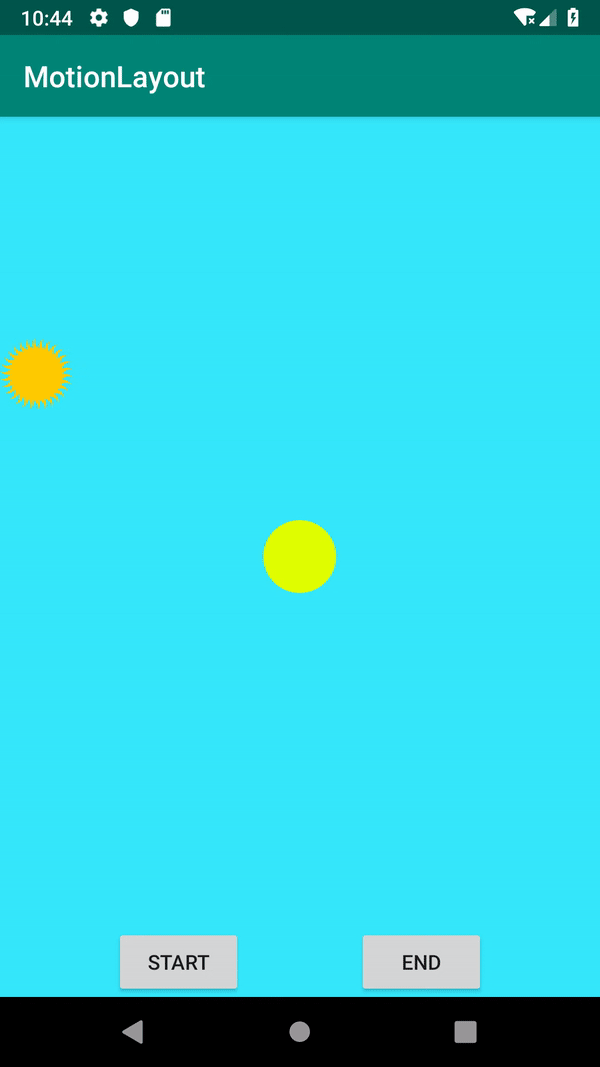

More Fun :)

Hope you'll enjoy the codelab!

The source code for this codelab can be found on Github.

In this step, you will download the code for the entire codelab and run a simple example app.

Click the following link to download the source code for this codelab:
Download Code Lab sources

Unzip the code, and open the project.
Run the app

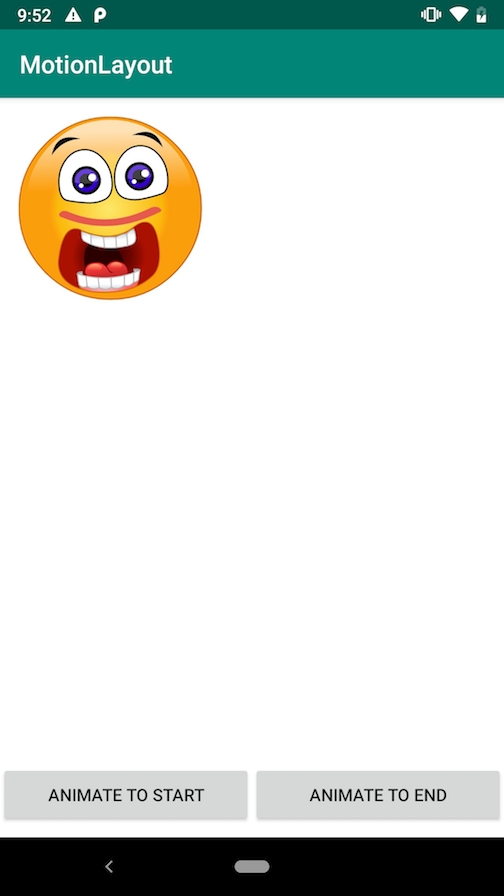

The app will display a crazy Emoji and two bottons. You should see something like this:

Feel free to visit us on GitHub.
The first phase is on the master branch.

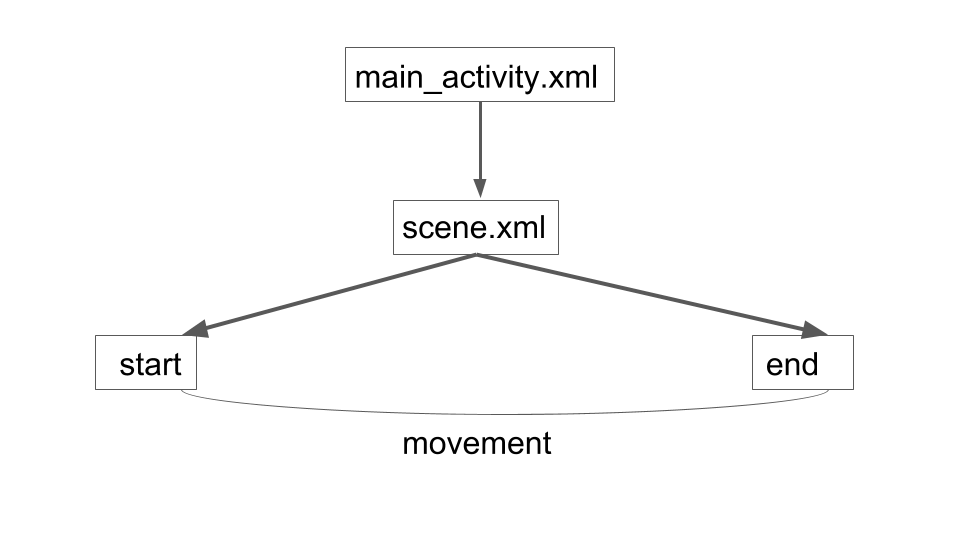

The most important thing to understand in MotionLayout is its structure.

Positioning views in MotionLayout is divided into two scenarios:

Static views - views you won't animate will use the ConstraintLayout toolset - as MotionLayout is a subclass of it.
Dynamic views - you'll declare these views using MotionLayout, without positioning attributes. Positioning them will be done by an external XML file, called Scene.

When you want to animate a view in your MotionLayout, you will delegate its constraints to your scene file.

A scene is basically where you describe the occurrences of your animations.

Each scene is composed of:

A start state - on which you will describe the initial state of the dynamic views.
An end state - on which you will describe the final state of the dynamic views.
A set of attributes describing the occurrences of the animation between the two states.

The system will calculate all of these parameters and handle the animation for you.

To summarize:

The first thing you'll want to do is to note where is the scene XML.

You'll do that by adding the layoutDescription parameter to the root view, which just points to the file where the animations are being described.

Go to res -> activity_main.xml, and add the following line into your MotionLayout root view :

    app:layoutDescription="@xml/scene_01"

Your view should look as follows:

<android.support.constraint.motion.MotionLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/motionLayout_container"
    android:background="#ffffff"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    app:layoutDescription="@xml/scene_01"
    tools:context=".MainActivity">

Next, create a filed called scene_01.xml.

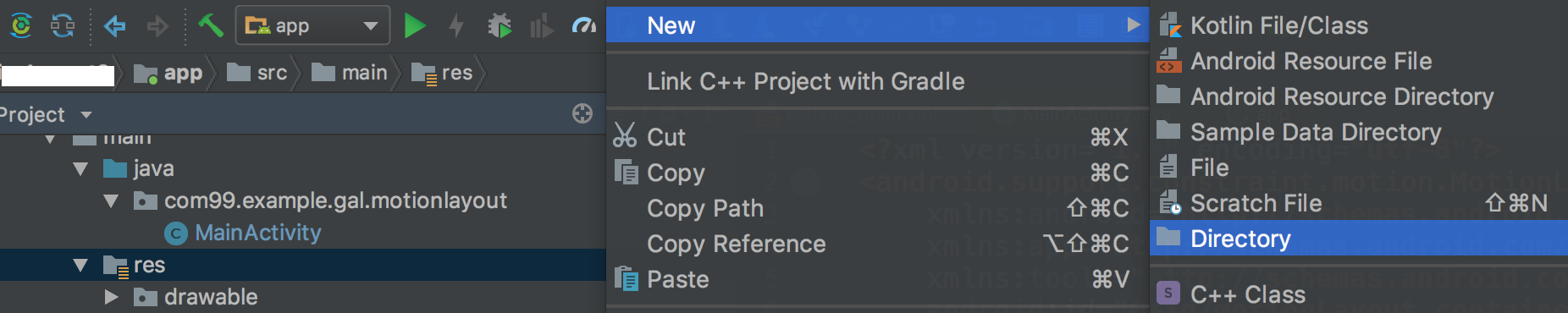

Create a folder called xml under res:
Create a new file - scene_01.xml - inside res -> xml.

Paste the following into your new scene file:

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">
    </Transition>

    <ConstraintSet android:id="@+id/start">
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
    </ConstraintSet>

</MotionScene>

Explanation:
In order to take control of an animation, you need to define a MotionScene.
MotionScene is the entity describing the animation. in your case, you'll make a transition from point A to point B on the screen, with a duration of 1 second.

Every point is a ConstraintSet.
The animation will start at @+id/start, and end at @+id/end.

Paste the following content inside @+id/start:

<Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginStart="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintTop_toTopOf="parent"/>

Paste the following content inside @+id/end:

<Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginEnd="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintTop_toTopOf="parent"/>

Your scene_01.xml file should look like this:

 <?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">

    </Transition>


    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginStart="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintTop_toTopOf="parent"/>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginEnd="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintEnd_toEndOf="parent"
            motion:layout_constraintTop_toTopOf="parent"/>
    </ConstraintSet>

</MotionScene>

Explanation:
Take a look at the <Constraint> of the @+id/start ConstraintSet,

You define the view on which you want the animation to run(@+id/main_iv).
Next, you define its constraints.
The current constraints are centering the view vertically and attaching it to the left.

The constraints in @+id/end are the same, with the only difference being the view is attached to the right.

Go to src -> MainActivity.java.
Add the following line of code into animateToEndButton's onClick call back:

mMotionLayout.transitionToEnd();

Add the following line of code into animateToStartButton's onClick call back:

mMotionLayout.transitionToStart();

Your onClick listeners should look like this:

    animateToEndButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            mMotionLayout.transitionToEnd();
        }
    });

    animateToStartButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            mMotionLayout.transitionToStart();
        }
    });

Run your app

Run the app and tap the buttons - the views should animate back and forth, as expected.

Click the following button to download the source code for this chapter:
Download Code Lab sources

Unzip the code and open the project.
Run the app

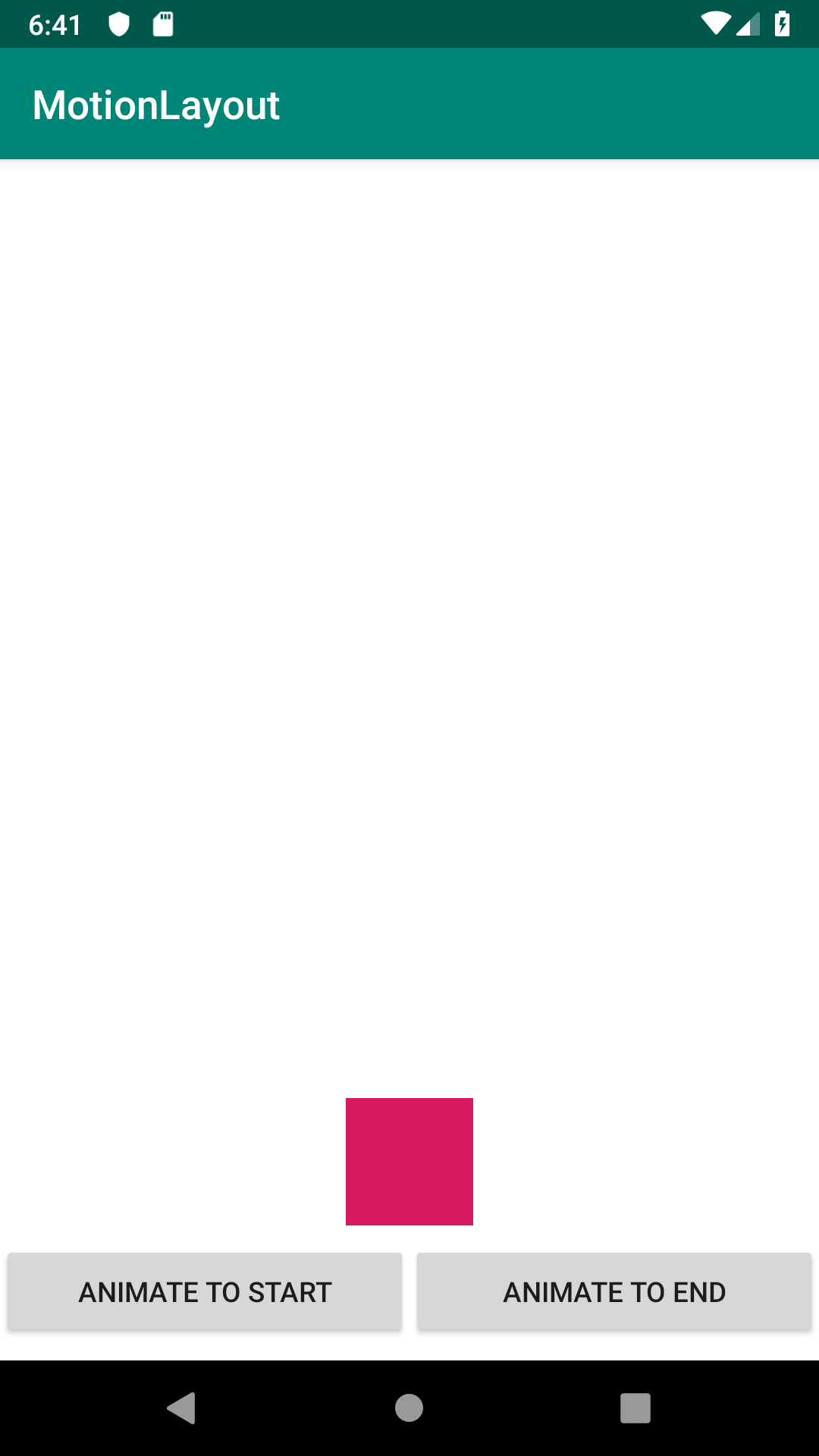

The app should look like this:

Pay attention to the following changes:

You're using a View instead of an ImageView in MainActivity.xml.

 <View
        android:id="@+id/main_iv"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:background="@color/colorAccent"
        />

You have a new scene file : scene_02.xml.
You changed the layoutDescription reference to point to @xml/scene_02 :

app:layoutDescription="@xml/scene_02"

In scene_02.xml, you constrain your view to center to the center-bottom at the start, and center-top at the end of the animation.

<ConstraintSet android:id="@+id/start">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:layout_marginBottom="8dp"
        motion:layout_constraintBottom_toTopOf="@+id/animate_to_start_bt"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintEnd_toEndOf="parent"/>
</ConstraintSet>

<ConstraintSet android:id="@+id/end">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:layout_marginTop="8dp"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintTop_toTopOf="parent"/>
</ConstraintSet>

Give it a shot by playing with the buttons.

Let's go over some attributes that can be changed during the animation.

Changing size:
Change layout_height of the end ConstraintSet to 164dp

android:layout_height="164dp"

Run your app

Alpha :
Add the following attribute to your start Constraint

android:alpha="1.0"

Add the following attribute to your end Constraint

android:alpha="0.5"

Run your app

Rotation :
Add the following attribute to your start Constraint

android:rotation="0.0"

Add the following attribute to your end Constraint

android:rotation="-720"

Run your app

Translation :
Add the following attribute to your start Constraint

android:translationX="0dp"

Add the following attribute to your end Constraint

android:translationX="100dp"

Run your app

Changing color:
You will need to add a CustomAttribute to your Constraint, both the start and the end:

<ConstraintSet android:id="@+id/start">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="64dp"
        android:layout_height="64dp"
        android:layout_marginBottom="8dp"
        motion:layout_constraintBottom_toTopOf="@+id/animate_to_start_bt"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintStart_toStartOf="parent">
        <CustomAttribute
            motion:attributeName="backgroundColor"
            motion:customColorValue="#00ff00" />
    </Constraint>
</ConstraintSet>

<ConstraintSet android:id="@+id/end">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="64dp"
        android:layout_height="164dp"
        android:layout_marginTop="8dp"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintTop_toTopOf="parent">
        <CustomAttribute
            motion:attributeName="backgroundColor"
            motion:customColorValue="#ff0000" />
    </Constraint>
</ConstraintSet>

Run your app

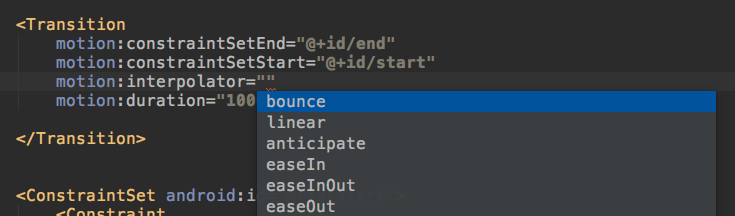

A quick word about interpolations.

You can define an interpolator for every <Transition>.

Go ahead and try one of the following :

Images have a special set of attributes you're going to try and explore.

Go back to your image view settings :

Download this new image and add it to your drawable folder.
Next, use an ImageFilterView instead of a View in MainActivity.xml.

 <android.support.constraint.utils.ImageFilterView
        android:id="@+id/main_iv"
        android:src="@drawable/icon2"
        android:layout_width="64dp"
        android:layout_height="64dp"/>

Create a new scene file: scene_03.xml.
Change the layoutDescription reference to point to @xml/scene_03 :

app:layoutDescription="@xml/scene_03"

Paste the following into scene_03.xml.

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">

    </Transition>


    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginStart="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginEnd="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintEnd_toEndOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

</MotionScene>

You can also checkout the image_manipulation branch.

Saturation :

In scene_03.xml, add a saturation CustomAttribute to the start and end Constraints :

<ConstraintSet android:id="@+id/start">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginStart="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintTop_toTopOf="parent">
        <CustomAttribute
            motion:attributeName="saturation"
            motion:customFloatValue="1" />
    </Constraint>
</ConstraintSet>

<ConstraintSet android:id="@+id/end">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginEnd="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintTop_toTopOf="parent">
        <CustomAttribute
            motion:attributeName="saturation"
            motion:customFloatValue="0" />
    </Constraint>
</ConstraintSet>

Run your app

Contrast :

In scene_03.xml, add a contrast CustomAttribute to the start Constraint :

<CustomAttribute
            motion:attributeName="contrast"
            motion:customFloatValue="1" />

And your end Constraint should get:

<CustomAttribute
            motion:attributeName="contrast"
            motion:customFloatValue="1" />

Run your app

Warmth :

In scene_03.xml, add a warmth CustomAttribute to the start Constraint :

<CustomAttribute
            motion:attributeName="warmth"
            motion:customFloatValue="1" />

And your end Constraint should get :

<CustomAttribute
            motion:attributeName="warmth"
            motion:customFloatValue="2" />

Run your app

Altering an image with a fade :

In activity_main.xml, Add altSrc to your ImageFilterView :

<android.support.constraint.utils.ImageFilterView
    android:id="@+id/main_iv"
    android:src="@drawable/icon2"
    app:altSrc="@drawable/icon"
    android:layout_width="64dp"
    android:layout_height="64dp"/>

In scene_03.xml, add a crossfade CustomAttribute to the start and the end Constraint :

<ConstraintSet android:id="@+id/start">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginStart="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintStart_toStartOf="parent"
        motion:layout_constraintTop_toTopOf="parent">
        <CustomAttribute
            motion:attributeName="crossfade"
            motion:customFloatValue="0" />
    </Constraint>
</ConstraintSet>

<ConstraintSet android:id="@+id/end">
    <Constraint
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginEnd="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintEnd_toEndOf="parent"
        motion:layout_constraintTop_toTopOf="parent">
        <CustomAttribute
            motion:attributeName="crossfade"
            motion:customFloatValue="1" />
    </Constraint>
</ConstraintSet>

Run your app

MotionLayout can handle the transition without any callbacks in your code. You can add interactivity by specifying relevant options in your XML scene.
Your user will be able to simply swipe the views back and forth to animate them.
This swipe isn't a simple trigger, but also takes acceleration and velocity into account.

Let's try it now.

Get rid of your buttons in activity_main.xml and remove handleViews() from MainActivity.java.

app:layoutDescription="@xml/scene_04"

Paste the following into scene_04.xml.

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">

    </Transition>


    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginStart="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginEnd="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintEnd_toEndOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

</MotionScene>

Your activity_main.xml should look like:

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.motion.MotionLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/motionLayout_container"
    android:background="#ffffff"
    android:layout_width="match_parent"
    app:layoutDescription="@xml/scene_04"
    android:layout_height="match_parent"
    tools:context=".MainActivity">


    <android.support.constraint.utils.ImageFilterView
        android:id="@+id/main_iv"
        android:src="@drawable/icon2"
        android:layout_width="64dp"
        android:layout_height="64dp"/>


</android.support.constraint.motion.MotionLayout>

Go to your scene_04.xml, and change your <Transition> into the following :

<Transition
    motion:constraintSetEnd="@+id/end"
    motion:constraintSetStart="@+id/start"
    motion:duration="1000">
    <OnSwipe
        motion:touchAnchorId="@+id/main_iv"
        motion:touchAnchorSide="right"
        motion:dragDirection="dragRight" />
</Transition>

Run your app

Up until now, you defined a pair of start and end states, letting MotionLayout transition between them.
You might ask your self, though - what if I want more than two states?

This is where Keyframes are powerful.

The main idea of a Keyframes is to give you a way to manipulate the animation in terms of size, color, rotation etc during its transition from the start to end state.

Next, you'll take an ImageView from bottom to top (centered horizontally), but this time ading a Keyframe that changes the bottom-up linear path into a diagonal path that goes from bottom-end to center-start and then to up-end.

Create a new scene file: scene_05.xml.
Change the layoutDescription reference to point to @xml/scene_05 :

app:layoutDescription="@xml/scene_05"

Paste the following into scene_05.xml.

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">
        <OnSwipe
            motion:touchAnchorId="@+id/main_iv"
            motion:touchAnchorSide="top"
            motion:dragDirection="dragUp"/>
    </Transition>


    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginBottom="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintEnd_toEndOf="parent">

        </Constraint>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginTop="8dp"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintEnd_toEndOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

</MotionScene>

Add the following below onSwipe:

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
</KeyFrameSet>

Run your app

Explanation :

percentX: Left of the parent.
framePosition: When the action takes place in the timeline.
target: The view being affected by the transition.

Let's try a more complicated KeyFrameSet.

Replace your KeyFrameSet with the following :

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="25"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="1"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="70"
        motion:target="@id/main_iv"/>
</KeyFrameSet>

Run your app

Let's step it up a notch! Aside from KeyFrames, you also have KeyAttribute which lets you play around with basic view attributes such as size, color, rotation etc.

Enlarge your view to twice its size and rotate it -45 degrees at the halfway point of your animation:

Replace your KeyFrameSet with the following :

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="25"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="1"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="70"
        motion:target="@id/main_iv"/>

    <KeyAttribute
        android:scaleX="2"
        android:scaleY="2"
        android:rotation="-45"
        motion:framePosition="50"
        motion:target="@id/main_iv" />
</KeyFrameSet>

Run your app

And if we will go wild :

Replace your KeyFrameSet with the following :

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="25"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="1"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentX="0"
        motion:framePosition="70"
        motion:target="@id/main_iv"/>
    <KeyAttribute
        android:rotation="-45"
        motion:framePosition="25"
        motion:target="@id/main_iv" />
    <KeyAttribute
        android:scaleX="2"
        android:scaleY="2"
        android:rotation="-245"
        motion:framePosition="50"
        motion:target="@id/main_iv" />
    <KeyAttribute
        android:rotation="-445"
        motion:framePosition="75"
        motion:target="@id/main_iv" />
</KeyFrameSet>

Run your app

You can leverage keyframes to create some cool combinations.

Create a new scene file: scene_06.xml.
Change the layoutDescription reference to point to @xml/scene_06 :

app:layoutDescription="@xml/scene_06"

Paste the following into scene_06.xml:

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">

    </Transition>

    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginBottom="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintEnd_toEndOf="parent">

        </Constraint>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginTop="8dp"
            motion:layout_constraintEnd_toEndOf="parent"
            motion:layout_constraintTop_toTopOf="parent">

        </Constraint>
    </ConstraintSet>

</MotionScene>

Go to activity_main.xml and add the following lines:

<Button
        android:id="@+id/animate_to_start_bt"
        android:layout_width="0dp"
        android:layout_height="50dp"
        android:layout_marginBottom="10dp"
        android:text="Animate To Start"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@+id/animate_to_End_bt"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintStart_toStartOf="parent"/>

    <Button
        android:id="@+id/animate_to_End_bt"
        android:layout_width="0dp"
        android:layout_height="50dp"
        android:layout_marginBottom="10dp"
        android:text="Animate To End"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintStart_toEndOf="@+id/animate_to_start_bt"/>

Also, in activity_main.xml, add :

private void handleViews() {
    animateToEndButton = findViewById(R.id.animate_to_End_bt);
    animateToStartButton = findViewById(R.id.animate_to_start_bt);
    mMotionLayout = findViewById(R.id.motionLayout_container);


    animateToEndButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            mMotionLayout.transitionToEnd();
        }
    });

    animateToStartButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            mMotionLayout.transitionToStart();
        }
    });
}

And call handleViews() from onCreate().

Next, add the following lines itno <Transition> :

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentY="0.25"
        motion:percentX="0.75"
        motion:framePosition="25"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentY="0.5"
        motion:percentX="0.1"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentY="0.75"
        motion:percentX="0.75"
        motion:framePosition="75"
        motion:target="@id/main_iv"/>
</KeyFrameSet>

You can even go a bit crazier and do the following:

<Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="4000">
        <KeyFrameSet>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.80"
                motion:percentX="0.80"
                motion:framePosition="2"
                motion:target="@id/main_iv"/>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.60"
                motion:percentX="0.80"
                motion:framePosition="10"
                motion:target="@id/main_iv"/>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.70"
                motion:percentX="1"
                motion:framePosition="15"
                motion:target="@id/main_iv"/>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.80"
                motion:percentX="0.80"
                motion:framePosition="20"
                motion:target="@id/main_iv"/>

            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.80"
                motion:percentX="0.20"
                motion:framePosition="25"
                motion:target="@id/main_iv"/>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.90"
                motion:percentX="0.10"
                motion:framePosition="30"
                motion:target="@id/main_iv"/>
            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="1"
                motion:percentX="0.20"
                motion:framePosition="35"
                motion:target="@id/main_iv"/>


            <KeyPosition
                motion:keyPositionType="parentRelative"
                motion:percentY="0.2"
                motion:percentX="0.20"
                motion:framePosition="40"
                motion:target="@id/main_iv"/>
        </KeyFrameSet>
    </Transition>

Run your app

MotionLayout offers you the ability to transform a linear path between two points to an arch.

Create a new scene file: scene_07.xml.
Change the layoutDescription reference to point to @xml/scene_07:

app:layoutDescription="@xml/scene_07"

Paste the following into scene_07.xml.

<?xml version="1.0" encoding="utf-8"?>
<MotionScene
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:motion="http://schemas.android.com/apk/res-auto">

    <Transition
        motion:constraintSetEnd="@+id/end"
        motion:constraintSetStart="@+id/start"
        motion:duration="1000">
        <OnSwipe
            motion:touchAnchorId="@+id/main_iv"
            motion:touchAnchorSide="top"
            motion:dragDirection="dragUp"/>

    </Transition>

    <ConstraintSet android:id="@+id/start">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginBottom="8dp"
            motion:layout_constraintBottom_toBottomOf="parent"
            motion:layout_constraintEnd_toEndOf="parent">

        </Constraint>
    </ConstraintSet>

    <ConstraintSet android:id="@+id/end">
        <Constraint
            android:id="@+id/main_iv"
            android:layout_width="180dp"
            android:layout_height="180dp"
            android:layout_marginTop="8dp"
            motion:layout_constraintStart_toStartOf="parent"
            motion:layout_constraintTop_toTopOf="parent"
            motion:layout_constraintBottom_toBottomOf="parent">

        </Constraint>
    </ConstraintSet>

</MotionScene>

For this property, you'll want to actually see the path.

Go to activity_main.xml and add the following line to the root view :

app:showPaths="true"

Go to scene_06.xml and add to the following line to the child <Constraint> of <ConstraintSet android:id="@+id/start"> :

motion:pathMotionArc="startHorizontal"

You should end up with the following:

<ConstraintSet android:id="@+id/start">
    <Constraint
        motion:pathMotionArc="startHorizontal"
        android:id="@+id/main_iv"
        android:layout_width="180dp"
        android:layout_height="180dp"
        android:layout_marginBottom="8dp"
        motion:layout_constraintBottom_toBottomOf="parent"
        motion:layout_constraintEnd_toEndOf="parent">

    </Constraint>
</ConstraintSet>

Run your app

You can also decide that you want your arch to only run for a portion of the path, and not all of it:

Delete the following line from your end <Constraint>:

motion:layout_constraintStart_toStartOf="parent"

Add the following lines to your <Transition> :

<KeyFrameSet>
    <KeyPosition
        motion:keyPositionType="parentRelative"
        motion:percentY="0.5"
        motion:pathMotionArc="none"
        motion:framePosition="50"
        motion:target="@id/main_iv"/>
</KeyFrameSet>

Run your app

Change pathMotionArc to flip :

motion:pathMotionArc="flip"

Run your app

The last feature you'll play with today is a tool that lets you monitor your animation manually.
You'll pass the control of the animation to a Seekbar. This way, you can understand exactly what is happening in every frame of your scene, in an interactive way.

You can control the progress of a MotionLayout by the setProgress() method.

Get rid of your buttons in activity_main.xml, and add a seekbar instead :

<android.support.v7.widget.AppCompatSeekBar
        android:id="@+id/seek"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintBottom_toBottomOf="parent"
        android:layout_marginBottom="10dp"/>

On MainActivity.java, change handleViews() method to :

 private void handleViews() {
    mMotionLayout = findViewById(R.id.motionLayout_container);
    SeekBar seekBar = findViewById(R.id.seek);
    seekBar.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {
        @Override
        public void onProgressChanged(SeekBar seekBar, int i, boolean b) {
            mMotionLayout.setProgress(i / 100f);
        }

        @Override
        public void onStartTrackingTouch(SeekBar seekBar) {

        }

        @Override
        public void onStopTrackingTouch(SeekBar seekBar) {

        }
    });
}

Run your app

Now is your turn :)

You are going to build the following animation:
